Fit drip edge

The pictures mainly show a vinyl roof edging strip but you should actually use a metal edging strip that is compatible with the brand of metal roofing that will be used.  Here is the one for the Nu-Metal brand.  In normal practice, the bend angle needs to match the roof pitch.  In my case a 45 degree (12:12) pitch with my 2x4 planking to vertical roof edge boards means I need about a 60 degree bend to fit the 2x4s and then carry over the vertical boards.

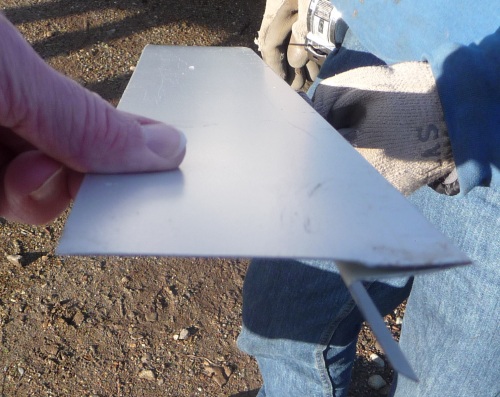

Metal roof edge strip

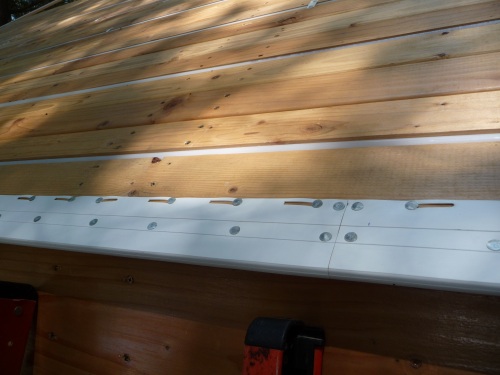

Roof drip edge nailing

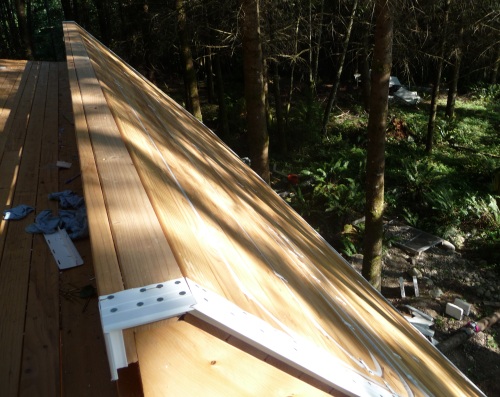

South roof with drip edge installed

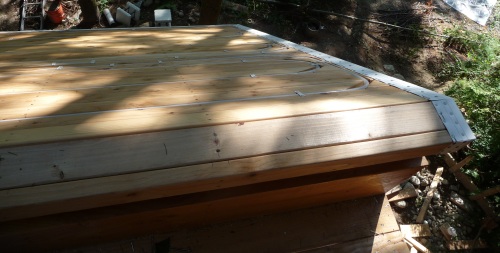

South roof with drip edge from above

Fit PEX piping

With the new design that puts the EPS on top of the roof planking, the PEX piping is not used.  Here's what I did on the evaluation building before the design change.

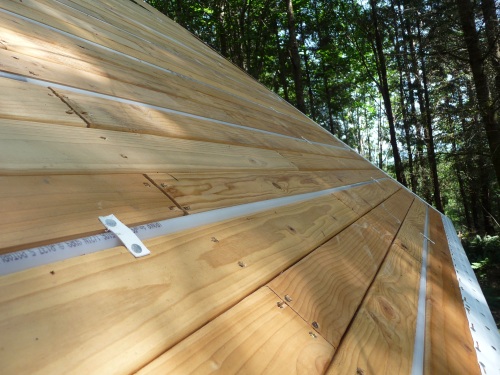

Roof PEX pipe retainer strips

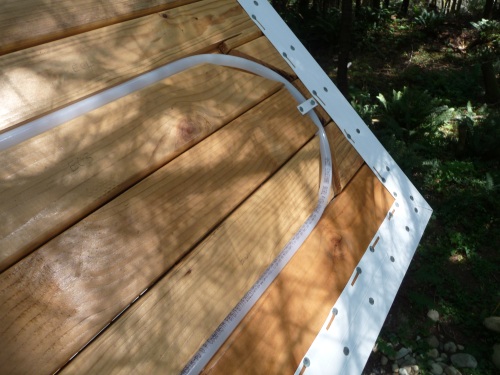

Roof bottom corner PEX pipe

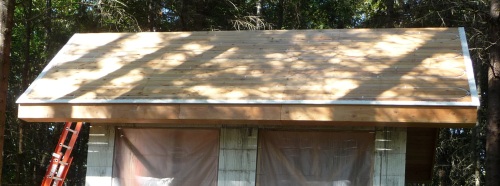

South roof with PEX pipe fitted

Grace Ice & Water

Details on the Grace Ice & Water roof membrane are here .

The horizontal overlap needs to be at least 4".  Overlaps from a left strip to a right strip should be 6".

Cut a length of Grace to be 2" longer than the roof width (including the overhang of the vinyl drip edges).

You need to start with the bottom of the roof first (so that the overlaps are correct for shedding water).

Put the length on the roof by taping it every 18" using duct tape.

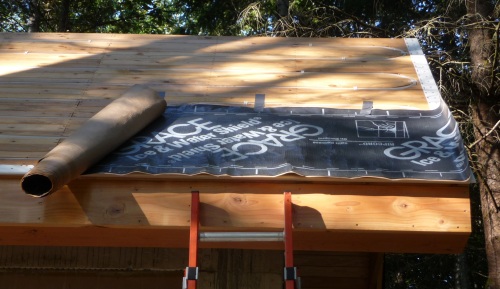

Grace taped in place initially

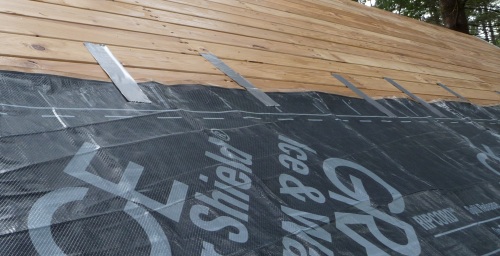

Grace Ice and Water held in place initially with duct tape

Gradually pull back the paper backing by reaching your arm under the sheet.  Make sure not to rip the paper or some of it may be left behind.

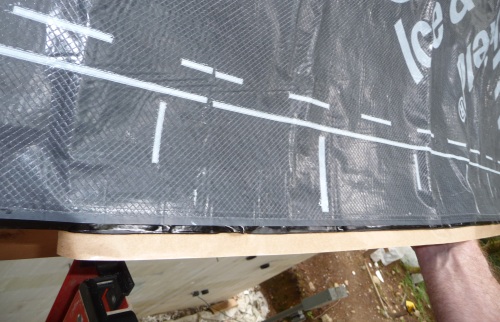

Grace Ice and Water pullback technique

For the last piece it is still worth using duct tape, but this time tape the bottom edge and pull from above.

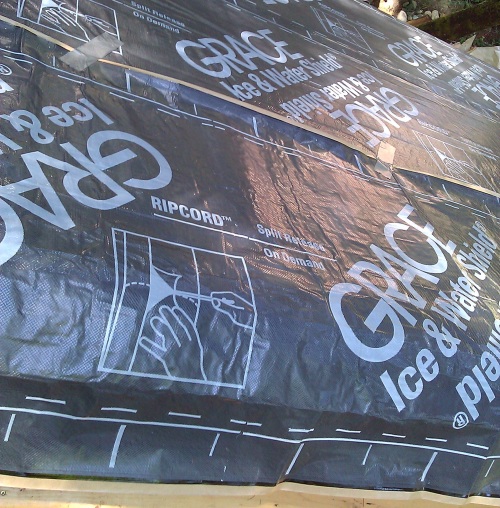

Grace Ice and Water Shield - top of slope

The last length of Grace curls back into the roof vent.  Note that with the new roof design there is no roof vent.

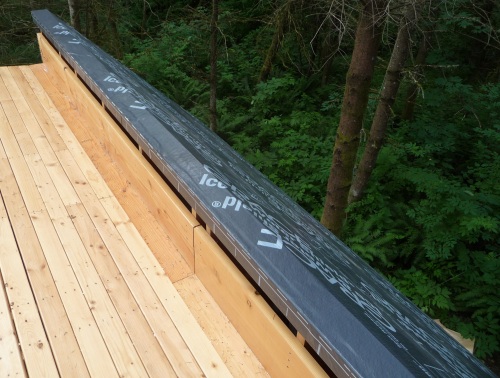

North roof with Grace Ice and Water shield

The following shows the north roof done.

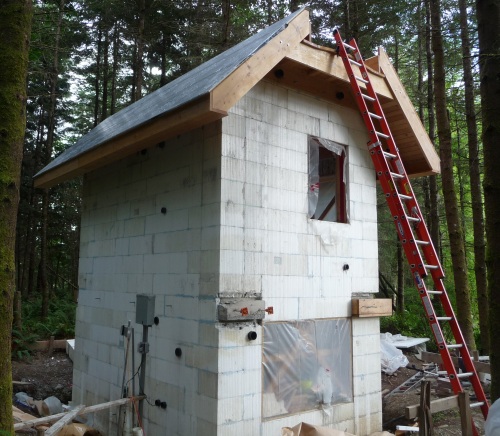

Site - North roof with Grace Ice and water shield

This shows all the Grace Ice and Water Shield done except for covering the roof vents...

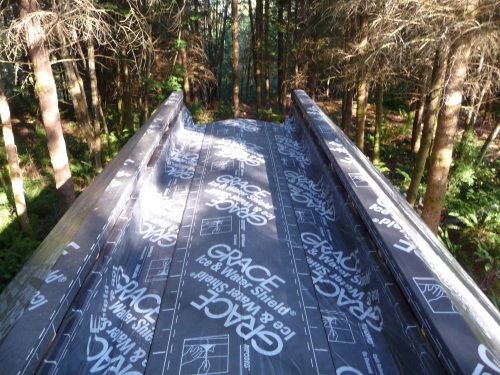

Roof with Grace over everywhere apart from vents

Lastly the roof vents are temporarily covered to keep the rain out until the proper vent grill is implemented...

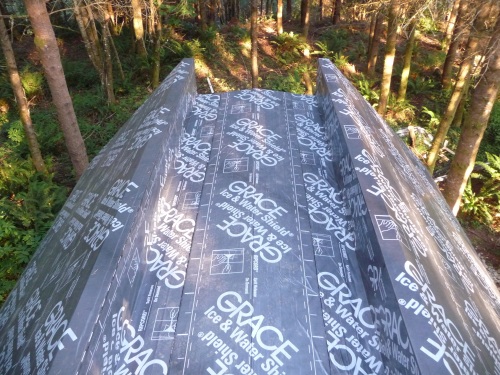

Grace Ice & Water Shield over full roof

Here's the building with all the Grace Ice & Water Shield applied.

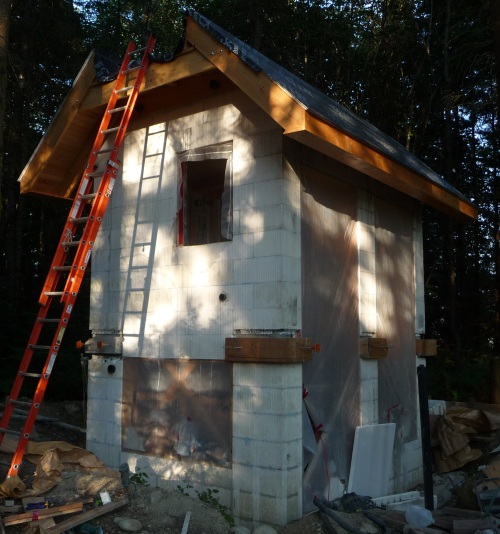

Site with roof waterproofing

Trim the excess off round the edges using the outer edge of the vinyl drip edge as the cutting guide.





*
