Carnation

Plumbing - DWV ABS

This has a list of all the ABS parts I use in my DWV piping.

Main 4" house sewer pipe

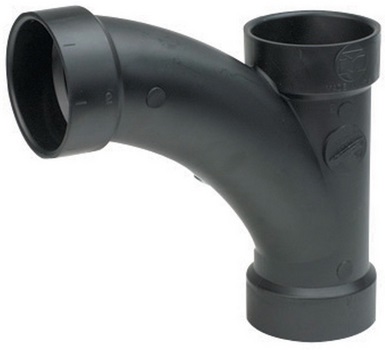

4x4x4-Long-Turn-Tee-Wye

4x4x4 Abs Long Turn Tee Wye

Used at bottom of vertical 4" sewer stacks.

Mueller Streamline 4-in Dia ABS Long-Turn Tee Wye

https://www.lowes.com/pd/Mueller-Streamline-4-in-Dia-ABS-Long-Turn-Tee-Wye-Fitting/3425290      $15.48



4x4-Long-turn-90-bend

ABS-4x4-Long-turn-90-bend
Mueller Industries 02874H 4"L Sweep 90DEG HxH Ell
http://www.ronshomeandhardware.com/02874H-4-L-Sweep-90DEG-HxH-Ell-p/749317.htm        $8.89



4x4x4-Cleanout





ABS 4in cleanout plug

http://www.ronshomeandhardware.com/02942H-4-MPT-Plug-p/419606.htm    $3.30

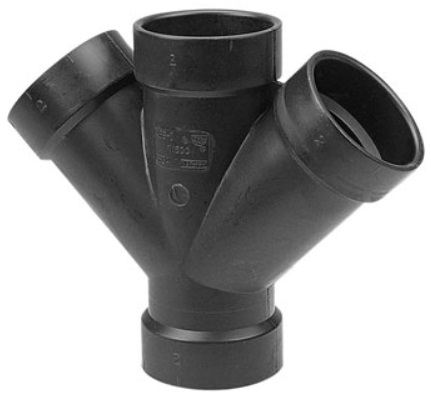

4x4x4x4-Wye

Abs-4x4x4x4-Wye

Used when the main sewer from the house enters the building.  The center leg is used for a cleanout.
Nibco ABS DBLY4
4" ABS DWV Plastic Fittings 45° Double Wye H x H x H

http://www.zoro.com/i/G2972742/?utm_source=google_shopping&utm_medium=cpc&utm_campaign=Google_Shopping_Feed&gclid=CLW4iZjticECFRFffgoddHgAlw         $46.08
http://www.faucetdepot.com/prod/4%22-ABS-DWV-Plastic-Fittings-45°-Double-Wye-H-x-H-x-H-151426.asp    $55.22



4x4-45-bend

ABS-4x4-45-bend

Used for joggles
Mueller Industries 02888H 4"45DEG HxH 1/8Bend Ell

https://www.lowesforpros.com/abs-dwv-pipe-fittings/mueller-industries-02888l-4-in-dia-45-degree-abs-elbow-fitting_g1634966.html  $5.56
http://www.ronshomeandhardware.com/02888H-4-45DEG-HxH-1-8Bend-Ell-p/415372.htm        $5.57
http://www.zoro.com/i/G2522152/?category=5774                                                $6.96



4x4-22.5-bend

ABS-4x4-22.5-bend

Used in the main horizontal sewer pipe
Mueller Industries 02983H 4" 22-1/2DEG HxH Ell
http://www.ronshomeandhardware.com/02983H-4-22-1-2DEG-HxH-Ell-p/240291.htm            $6.41







4x4-pipe-coupler

ABS-4x4-pipe-coupler

Couple 4" pipes into longer lengths

http://www.supplyhouse.com/Nibco-I009950-4-Hub-ABS-DWV-Coupling-5801   $4.68
Mueller Industries 02936H 4" HxH Coupling
http://www.ronshomeandhardware.com/02936H-4-HxH-Coupling-p/419614.htm                    $2.94  (Expensive shipping)
http://www.zoro.com/i/G0722434/?category=5774                                                    $3.77







Branching off from the stack

4x4x3-Wye-45

ABS-4x4x3-Wye-45

Used to connect one 3" horizontal branch to the 4" sewer stack, particularly when need to come out at an angle from a corner (which is the normal case).  Whenever possible (and when there is vertical height available (eg in basement or when there is a wall that can be used)) use two branches one above another, but for the one below it is better to use a Wye then pipe then a 45 degree.  Do this even if not needed today because it allows for future expansion,



Mueller Industries 02864H 4x4x3 L Turn Tee Wye
http://www.ronshomeandhardware.com/02864H-4x4x3-L-Turn-Tee-Wye-p/493403.htm        $14.33
http://www.zoro.com/i/G3160245/?category=5774                                                    $15.73



4x4x3-Wye

ABS-4x4x3-Wye
Used for a connection from the 4" sewer stack when there is already a branch off above for the floor.  This one relies on using the wall to hide the pipe.  It connects to a piece of 3" pipe upwards to floor height and then a 3x3-45-bend at ceiling height.

Mueller Industries 02830H 4x4x3 HxHxH Redu Wye
http://www.ronshomeandhardware.com/02830H-4x4x3-HxHxH-Redu-Wye-p/303099.htm        $10.56

3x3-45-bend

ABS-3x3-45-bend

Used for connecting from stack in the lower case and for joggles.


Mueller Industries 02887H 3"45DEG 1/8 Bend Ell
http://www.ronshomeandhardware.com/02887H-3-45DEG-1-8-Bend-Ell-p/324582.htm        $3.57
http://www.zoro.com/i/G1346983/?category=5774                                                        $4.11

http://www.homedepot.com/p/Mueller-Streamline-3-in-ABS-45-Degree-Hub-x-Hub-Elbow-02887H/100111883?N=5yc1vZbqog    $6.32



4x4x3x3-Double-Wye

ABS-4x4x3x3-Double-Wye

Can be used to connect two 3" horizontal branches to the 4" sewer stack if they are in opposite directions.  It can be nice as it provides for future expansion.  In practice using this can be difficult in the concrete corner where the stacks are usually positioned.  Also it does not work well when needing to come off in a particular direction.  The branches connect to lengths of 3" pipe at 45 degrees and then to 3x3-45-bends when it gets to in0ceiling height.

NIBCO Model # C5834HD4433 Internet # 100178347 Store SKU # 134683 4 in. x 4 in. x 3 in. x 3 in. ABS DWV All-Hub Double Wye
http://www.homedepot.com/p/NIBCO-4-in-x-4-in-x-3-in-x-3-in-ABS-DWV-All-Hub-Double-Wye-C5834HD4433/100178347?N=5yc1vZbqog            $23.96
http://www.nibco.com/Fittings/Plastic-Fittings/ABS-DWV-Fittings/5834-45-Double-Wye-Hub-ABS-DWV/



3x3x3-Wye

ABS-3x3x3-Wye

Used when one 3" branch needs to serve two toilets.  Not a bad idea to include for future expansion even if no current plans for a second toilet.

Mueller Industries 02824H 3" HxHxH Wye
http://www.ronshomeandhardware.com/02824H-3-HxHxH-Wye-p/144477.htm        $6.73



3x3-Long-turn-90-bend

ABS-3x3-Long-turn-90-bend

Used under toilet.
Mueller Industries 02873H 3"L Sweep HxH 90DEG Ell
http://www.ronshomeandhardware.com/02873H-3-L-Sweep-HxH-90DEG-Ell-p/511097.htm        $5.34

http://www.homedepot.com/p/NIBCO-3-in-ABS-DWV-90-Degree-Hub-x-Hub-Long-Turn-Elbow-C5807LTHD3/100348327?N=5yc1vZbqog    $7.23

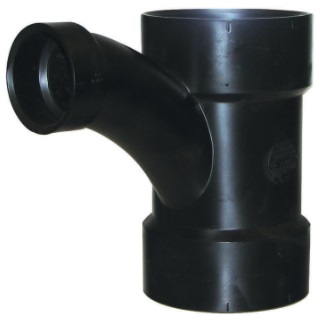

4x4x2-Wye-45

Abs 4x4x2 Long Wye 90

Used to connect the drain from an isolated sink into the 4" sewage stack.  Not a particularly common case because usually a 3" branch is used.
Mueller Industries 02863H 4x4x2L TurnHxHxH TeeWye

https://www.lowesforpros.com/pd/Mueller-Streamline-4-in-x-4-in-x-2-in-Dia-ABS-Long-Turn-Tee-Wye-Fitting/3427882    $17.98
http://www.ronshomeandhardware.com/02863H-4x4x2L-TurnHxHxH-TeeWye-p/749358.htm        $12.45



Branching off 3" branch for smaller fixtures

3x3x2-Wye-45

ABS-3x3x2-Wye-45

Used to provide drainage of non-toilet fixtures into the toilet 3" pipe
Mueller Industries 02857H 3x3x2 L Turn Tee Wye
http://www.ronshomeandhardware.com/02857H-3x3x2-L-Turn-Tee-Wye-p/511212.htm        $5.93
http://www.zoro.com/i/G1911122/?category=5774                                                        $6.52
http://www.homedepot.com/p/NIBCO-3-in-x-3-in-x-2-in-ABS-DWV-Hub-x-Hub-x-Hub-Long-Radius-Sanitary-Tee-C5812LHD332/100345360?N=5yc1vZbqog            $6.01



3x3x2-Wye

ABS-3x3x2-Wye

Used to branch off for sink and for toilet venting.

http://www.ronshomeandhardware.com/02828H-3x3x2-HxHxH-Redu-Wye-p/511105.htm    $4.54

http://www.homedepot.com/p/NIBCO-3-in-x-3-in-x-2-in-ABS-DWV-H-x-H-x-H-Wye-C5810HD332/100343070?N=5yc1vZbqog        $5.41

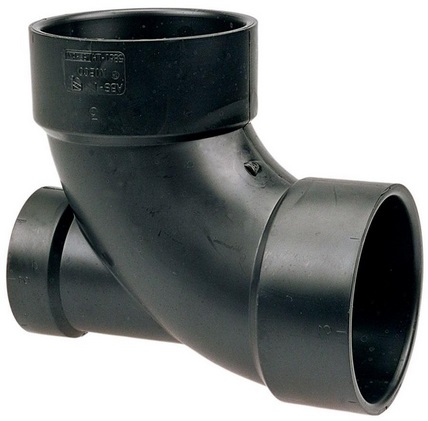

3x3x2-Turn-Elbow-With-Low-Heel

3x3x2 Abs Turn Elbow With Low Heel

NIBCO 3-in dia 90-Degree ABS Elbow With Low Heel Inlet Fitting

https://www.lowesforpros.com/pd/NIBCO-3-in-dia-90-Degree-ABS-Elbow-With-Low-Heel-Inlet-Fitting/4331478          $8.38

  https://www.homedepot.com/p/3-in-x-3-in-x-2-in-ABS-90-Degree-Hub-x-Hub-x-Hub-Elbow-with-Low-Heel-C5861LHHD332/100343050     $5.98



2" branches

2x2x2-Sanitary-Tee-Female-Male

ABS-2x2x2-Sanitary-Tee-Female-Male

Used to pickup horizontal arms from p traps from floor drains and showers.
Mueller Industries 03113H 2" Spgxhxh San Str Tee
http://www.ronshomeandhardware.com/03113H-2-Spgxhxh-San-Str-Tee-p/278358.htm        $4.98



2x2x1.5-Sanitary-Tee

ABS-2x2x1.5-Sanitary-Tee

Used to pickup horizontal arms from p traps from bathroom sinks.

http://www.ronshomeandhardware.com/02758H-2x2x1-1-2-HxHxH-San-Tee-p/511030.htm    $2.04



2x2-Long-turn-90-bend

ABS-2x2-Long-turn-90-bend

Used at base of wall for a bathroom sink.
http://www.ronshomeandhardware.com/02872H-2-L-SweepHxH-90DEG-Ell-p/421081.htm         $2.59



Vent pipes

2x2-90-bend-Female-Male

ABS-2x2-90-bend-Female-Male

Best bet for vent at top of Sanitary-Tee
Mueller Industries 02881H 2" 90DEG SpgxH Str Ell - Quantity 5
http://www.ronshomeandhardware.com/02881H-2-90DEG-SpgxH-Str-Ell-p/146001-5.htm        $13.14 for 5



2x2-90-bend

ABS-2x2-90-bend

Best bet for vent pipe corners as less expensive and more compact than long sweep.
Mueller Industries 02877H 2" 90DEG HxH Ell
http://www.ronshomeandhardware.com/02877H-2-90DEG-HxH-Ell-p/324103.htm                $1.83
http://www.zoro.com/i/G3249373/?category=5774                                                        $1.91



2x2x2-Sanitary-Tee

ABS-2x2x2-Sanitary-Tee

Least expensive way to connect vertical vent pipes into the 5' high horizontal vent
Mueller Industries 02753H 2" HxHxH San Tee
http://www.ronshomeandhardware.com/02753H-2-HxHxH-San-Tee-p/142729.htm            $2.24
http://www.zoro.com/i/G2679747/?category=5774                                                    $2.45
http://www.homedepot.com/p/NIBCO-2-in-ABS-DWV-Hub-x-Hub-x-Hub-Sanitary-Tee-C5811HD2/100347862?N=5yc1vZbqog                    $2.60



2" pipe coupler

Abs 2in Coupler

http://www.supplyhouse.com/Nibco-I009550-2-Hub-ABS-DWV-Coupling-5801   $0.93

https://www.lowesforpros.com/abs-dwv-pipe-fittings/nibco-2-in-dia-abs-coupling-fitting_g1634984.html  $0.95



3x3-45-bend-Male-Female

ABS-3x3-45-bend-Male-Female

Not actually very useful because Wyes with 45 degree outlets typically require a length of pipe at 45 degrees before doing the 45 degree turn to horizontal, so you actually need all hub 45 degree bends.
Mueller Industries 02892H 3" 45DEG SpgxH Str Ell
http://www.ronshomeandhardware.com/02892H-3-45DEG-SpgxH-Str-Ell-p/145888.htm            $3.18
http://www.zoro.com/i/G2353942/?category=5774                                                            $3.72
http://www.homedepot.com/p/NIBCO-3-in-ABS-DWV-45-Degree-Hub-x-Hub-Street-Elbow-C58062HD3/100344941                                                                $2.91



1.5x1.5-90-bend-Female-Male

ABS-1.5x1.5-90-bend-Female-Male

Used into swivel ABS
Mueller Industries 02880H 1-1/2" 90DEG Street Ell
http://www.ronshomeandhardware.com/02880H-1-1-2-90DEG-Street-Ell-p/145979.htm            $1.67





1.5x1.5-45-bend

ABS-1.5x1.5-45-bend

Used for joggles
Mueller Industries 02885H 1-1/2 45DEG HxH Ell
http://www.ronshomeandhardware.com/02885H-1-1-2-45DEG-HxH-Ell-p/324251.htm            $1.54
http://www.zoro.com/i/G2894963/?category=5774                                                $1.13



2x2-45-bend

ABS-2x2-45-bend

Used for joggles
Mueller Industries 02886H 2" 45DEG HxH Ell
http://www.ronshomeandhardware.com/02886H-2-45DEG-HxH-Ell-p/324285.htm                $1.86
http://www.zoro.com/i/G0583527/?category=5774                                                $1.68





2x1.5-Reducer

ABS-2x1.5-Reducer

Used to connect 2" pipe into 1.5" hair trap
Mueller Industries 02948H 2x1-1/2HxH ReduCoupling
http://www.ronshomeandhardware.com/02948H-2x1-1-2HxH-ReduCoupling-p/749275.htm        $1.95
http://www.zoro.com/i/G3142745/?category=5774                                                    $1.44



2x2-pipe-coupler

ABS-2x2-pipe-coupler

Couple 2" pipes into longer lengths
Mueller Industries 02934H 2" HxH Coupling
http://www.ronshomeandhardware.com/02934H-2-HxH-Coupling-p/323733.htm                    $1.32
http://www.zoro.com/i/G2876212/?category=5774                                            $0.80



3x3-pipe-coupler

ABS-3x3-pipe-coupler

Couple 3" pipes into longer lengths
Mueller Industries 02935H 3" HxH Coupling
http://www.ronshomeandhardware.com/02935H-3-HxH-Coupling-p/323907.htm                    $1.96
http://www.zoro.com/i/G0548877/?category=5774                                                            $2.22





3x3-22.5-bend

ABS-3x3-22.5-bend

Get to the right horizontal direction
Mueller Industries 02901H 3" HxH 22-1/2DEG Ell
http://www.ronshomeandhardware.com/02901H-3-HxH-22-1-2DEG-Ell-p/511139.htm            $5.61





2in-cleanout

ABS-2in-cleanout

Used for Vent cleanout
Mueller Industries 02998H 2"HxHxFPT CleanOut Tee
http://www.ronshomeandhardware.com/02998H-2-HxHxFPT-CleanOut-Tee-p/511014.htm        $5.28



1.5x1.5-Swivel-screw-connector

ABS-1.5x1.5-Swivel-screw-connector

Connect to hair traps. Already got from Zoro
Mueller Industries 53421 1-1/2"HxFPT SwivAdapter
http://www.ronshomeandhardware.com/53421-1-1-2-HxFPT-SwivAdapter-p/749416.htm            $2.33

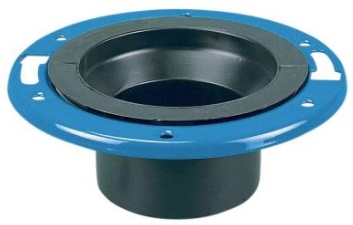

Toilet Flange

Toilet flange

NIBCO 4 in. x 3 in. ABS DWV Adjustable Closet Flange
http://www.homedepot.com/p/NIBCO-4-in-x-3-in-ABS-DWV-Adjustable-Closet-Flange-C58512AHD43/100346675?N=5yc1vZbqog            $10.47



Often it is better to use an offset floor flange, especially if there are floor beams in the way.

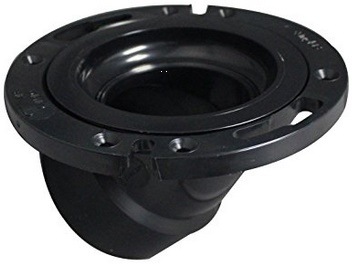

Toilet Floor Flange Offset  Offset toilet floor flange



2in-cleanout-thread-male

Abs-2in-cleanout-thread-male

Used to make 2" hair traps.
Mueller Industries 02928H 2" HxMIP Male Adapter
http://www.ronshomeandhardware.com/02928H-2-HxMIP-Male-Adapter-p/186692.htm     $1.75



2in-cleanout-plug

Abs-2in-cleanout-cap



Used to make 2" hair trap
Nibco ABS CAPFIP2
http://www.faucetdepot.com/faucetdepot/ProductDetail.asp?Product=151408&AffiliateID=GoogleDirectFeed&gclid=CjwKEAjwwJmhBRC56KOelNOXhxUSJAB_w2uNBmtFwaB5VbP6K6F6iYNR5dJaRFNSzlCT7580A5Rf9BoCh6vw_wcB        $3.86

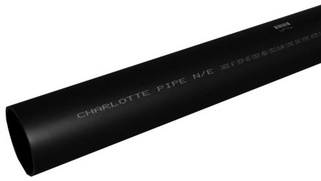

2" ABS pipe

Abs Pipe 2in

https://www.lowesforpros.com/general/charlotte-pipe-2-in-x-10-ft-dwv-pipe_12978825.html   $7.98 (when buy 10) - 5% + tax

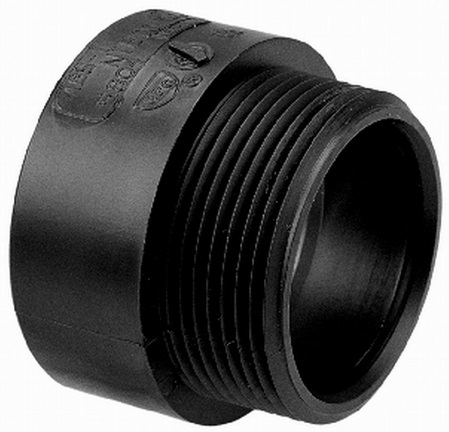

4in Abs Screw Male

Can be used to attach 4" pipe to a previously installed screw cleanout (in place of the plug).  Note that you need to rotate the pipe so it is not possible to uninstall (unless you use a Fernco).

4 in. ABS DWV Hub x MIPT Male Adapter

https://www.homedepot.com/p/4-in-ABS-DWV-Hub-x-MIPT-Male-Adapter-C5804HD4/100342725          $7.15







*
