Electrical Outlets and Boxes

Star A better way to mount the electrical boxes inside your house.



Electrical Outlets

Tamper Resistant

All power outlets need to be tamper resistant to meet building code.

AFCI

AFCI is needed on almost all 15 and 20 amp circuits.

"As of the 2014 NEC, AFCI protection is required on all branch circuits supplying outlets or devices installed in dwelling unit kitchens, family rooms, dining rooms, living rooms, parlors, libraries, dens, bedrooms, sunrooms, recreation rooms, closets, hallways, laundry areas, and similar rooms and areas."

Combined AFCI/GFCI breakers are now starting to become available at a reasonable price...

Siemens Qf 20-Amp 20-Pole Dual Function AFCI/GFCI Circuit Breaker
https://www.lowesforpros.com/pd/Siemens-Qf-20-Amp-20-Pole-Dual-Function-AFCI-GFCI-Circuit-Breaker/50310999   $44.97
Siemens Qf 15-Amp 15-Pole Dual Function AFCI/GFCI Circuit Breaker
https://www.lowesforpros.com/pd/Siemens-Qf-15-Amp-15-Pole-Dual-Function-AFCI-GFCI-Circuit-Breaker/50310997   $44.97

GFCI

All GFCI power outlets to meet building code must be tamper resistant.

In bathrooms and other wet rooms (as well as outside) it is good to use a waterproof version.  It does not have to be 20A (15A would do) but I use 20A).



Typically regular power outlets are 15A, but I use 20A.  I prefer the more modern "Decora" rectangular style.  To meet building code, they must be tamper resistant.



You can get USB outlets for charging phones etc., but I prefer to use plugin wall warts.

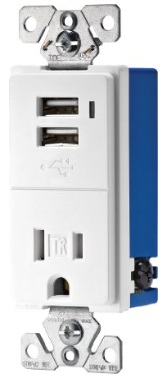

USB charging socket Cooper   Purchasing details are here .

Fill in blank positions...

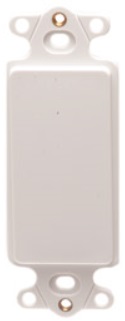

Decora blank white   Purchasing details are here .

Decora with Cat-6 hole...

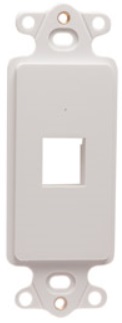

Decora Cat6 hole   Purchasing details are here .



It is best to use home automation switches (eg TP-Link Kasa), but if you need a less expensive alternative then use regular Decora rocker switches.  You can always replace these with home automation ones later.

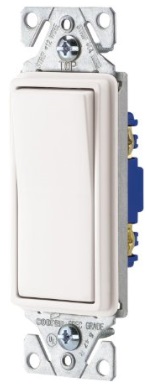

Decora rocker switch Cooper Purchasing details are here .



Electrical boxes

Use plastic electrical boxes in the walls because it avoids having to ground them.

Use the deepest possible electrical boxes so you have plenty of room.

Put an S in the wire before entering electrical boxes so you have some extra cable available if ever needed in the future. It also avoids having to accommodate extra wire length within the box.

Label all wiring with labels designed for the purpose that will not fall off with age.  Take photos of wiring before putting up the drywall.  I also write on the Romex jacket using a ballpoint pen.

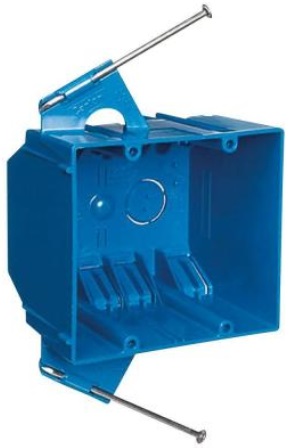

Electrical Box 2Gang 32 cu in Carlon Details are here .

Available from Lowes or HomeDepot for under $1 each.  Before using, need to perform the following operations on the box...

Pull out nails.
Cut off nail lugs with a chop saw.
Get rid of the little positioning lugs using a chisel.
Measure half way down the sides and draw a line with a square all the way up the side to the top.  Half way is about 1-13/15" from the edges, but measure from both faces to get high accuracy.

(There is no need to drill holes or bend away the wire hole lugs.)

Screw the electrical box in place using 1-1/4" screws with the box center line lining up with center lines drawn on 2-by drywall supports.  Needs to be 3/8" proud of the 2-by surface.  Use a 3/8 thick piece of wood as a template.

Electrical box protrusion spacer

Use a clamp too get the box positioned on the height line and with the right protrusion.  Use a long extension on the screwdriver so the angle is not enough to cause the box to get pulled back by the screw tightening.  The screw makes its own hole in the plastic and then into the wood.  Two screws are used on each side so the box is rigidly supported.

Screwing clamped electrical boxes

Details of the screwdriver extension are here .

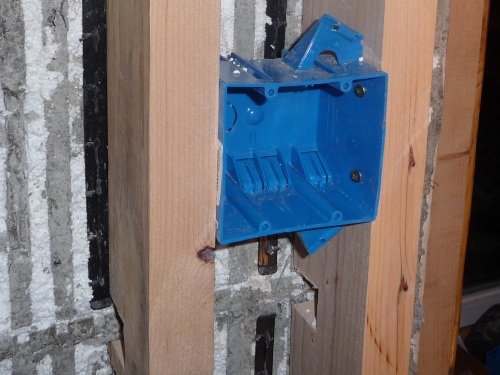

Electrical box double supported

Electrical boxes and sockets fitted

Bathroom GFCI...

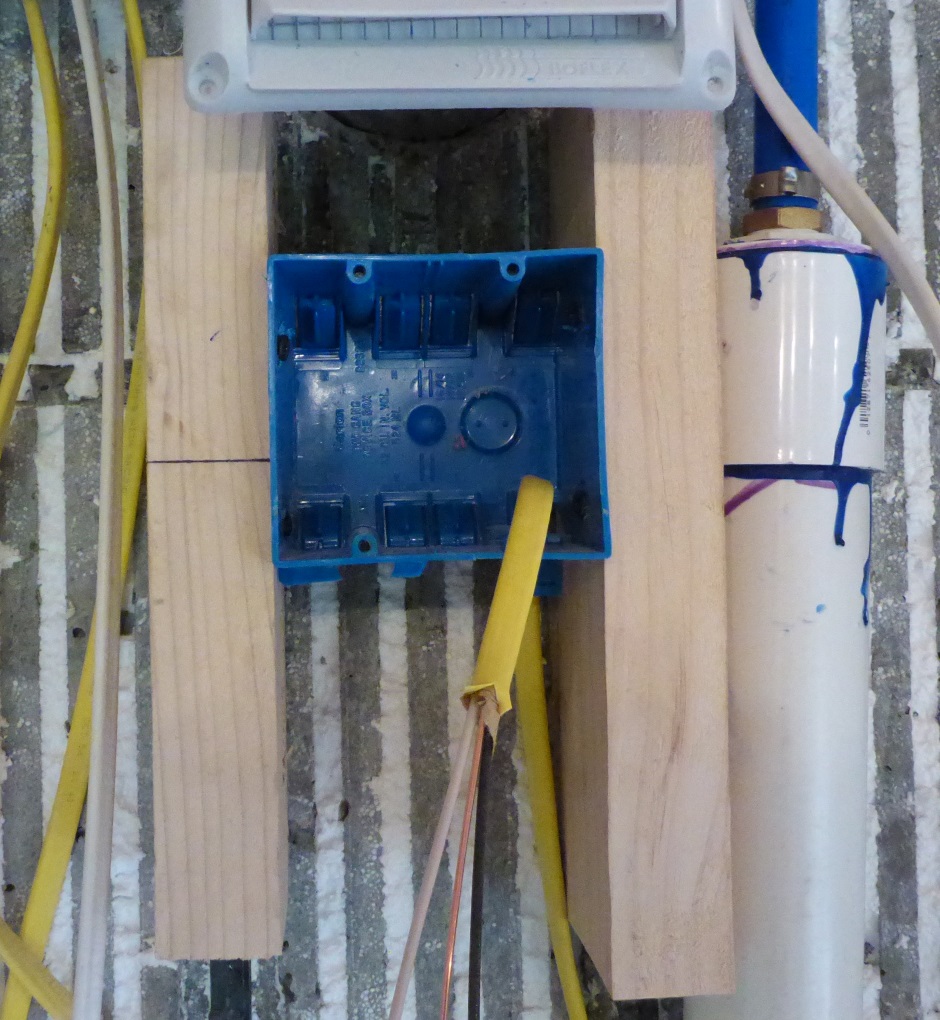

Bathroom GFCI electricsl box





*
