Electrical Feed to Panels

Star Getting power to the main panel and sub-panels in your house.



Getting power to your house

Choose an underground utility connection

Power to your site needs to be installed by the electrical utility company.  You can request either an above ground wire from a pole or an underground feed.  You should definitely choose the underground feed.  Depending on circumstances it may even come out to be about the same price, and it's certainly more robust, less ugly, and less general hassle.  With an underground feed the utility company will provide the wiring all the way to the electricity meter (which is not the case with an overhead feed).

Street transformer

The utility company will install a transformer near the edge of the street in a big green box on a concrete pad.  These transformers make an annoying humming noise so it is best to try to get the utility company to position it out of ear shot relative to where you typically like to sit in your yard.  The job of the transformer of course is to take the high voltage that the utility company uses for distribution and change it down to the 120/240 volts that your house needs.

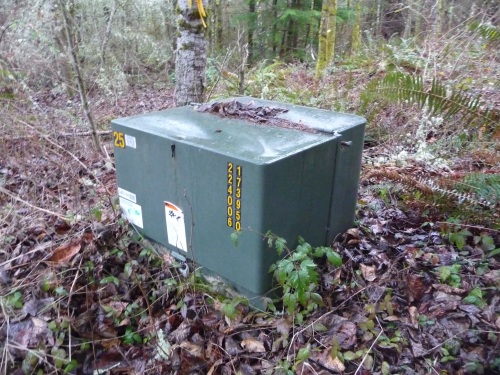

Street transformer

Typically what is delivered to a house is "one phase with two live wires" rather than three phases.  This is also known as "single phase, three wire".  The two live wires are referred to as L1 and L2.  From L1 to neutral is 110-120V, from L2 to neutral is also 110-120V, and from L1 to L2 is 220-240V  This diagram explains it...

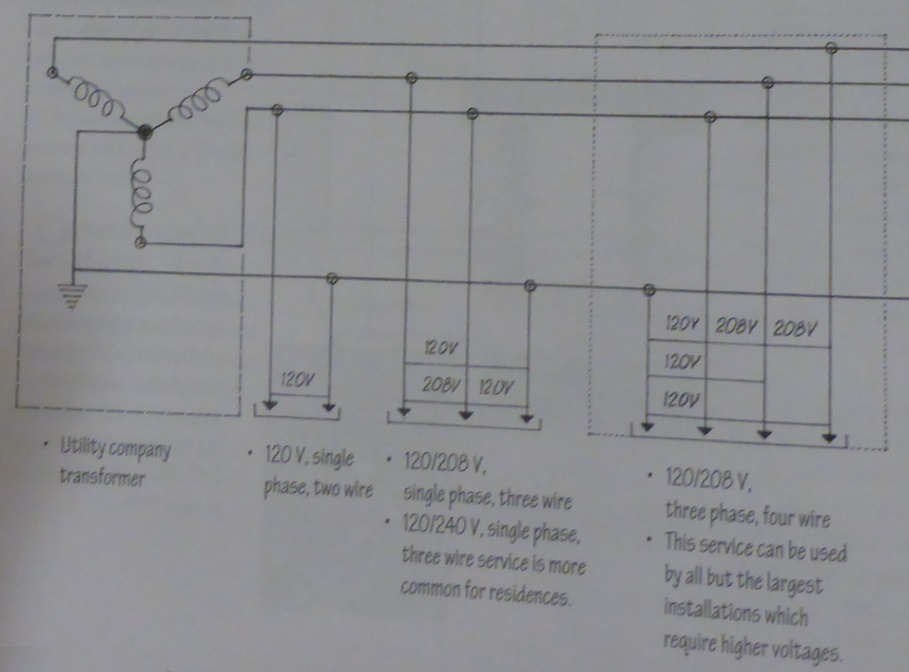

Electrical wires and phases

Electricity meter

From the transformer, wires run underground in conduit (assuming an underground service) to an electricity meter that is typically positioned on the outer wall of your house at a height of about 5 feet (to allow easy reading).

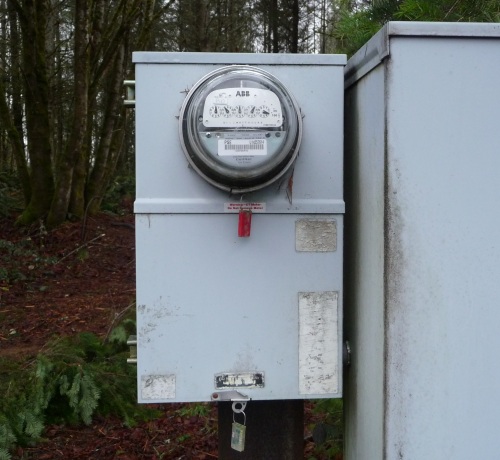

Electricity meter

Free standing outside panel assembly

Another option (particularly if your house has not yet been built) is to have a free standing panel arrangement in your yard.  This is what I have...

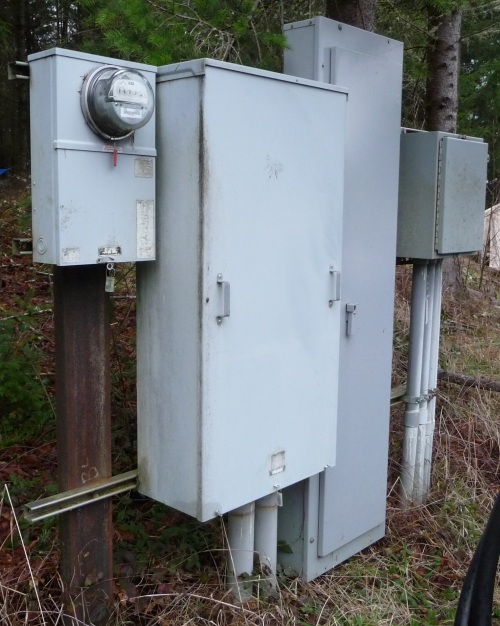

Free standing electrical panel arrangement

An important consideration is that the electricity meter needs to be physically close to where your main panel is (that has the main breaker).  If the meter is on the outside of your garage wall then typically the electrical panel will be on the inside face of that same wall in the same location so that the link between the two is only the wall thickness.  If you are mounting your electricity meter free standing outside then that means your electrical panel will also be outside as part of that same arrangement.  This is perfectly ok, but in practice it means that you will probably install sub-panels inside your house that are fed from the outside main panel.  In my case the main panel feeds two 200 amp sub-panels (that our mounted in the basement) from the 600 amp main panel that is outside.

Electrical Main Panel

Main breaker

The "Service Entry" wires from the adjacent meter box come into the main panel and the two live wires go directly to the main breaker.  In my case it is a 600 amp breaker because I have a 600 amp electrical service from the utility company.  Note that each live wire in the picture below is actually 2 wires in order to be able to handle the high current.

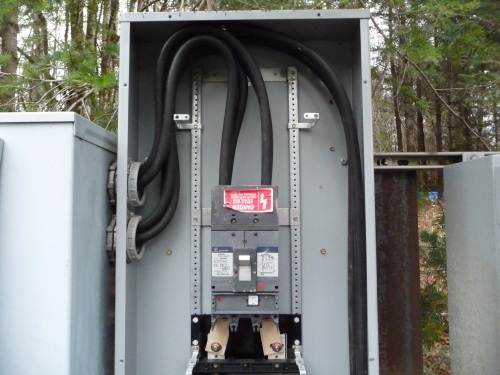

Service entry wires into main panel

Neutral plate/bus

The neutral wire (again actually two wires in parallel to handle the current) is routed to the Neutral plate that (in my case) is in the bottom half of the main electrical panel.

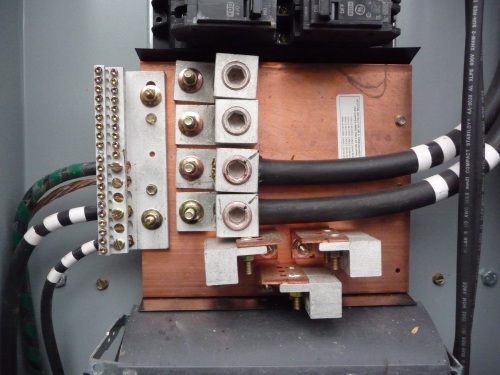

Electrical neutral plate in main panel

Neutral connects to ground in Main Panel

In the case of a "Main panel", the neutral plate/bus also needs to be connected to earth.  This means it needs to connect to big copper stakes that are driven into the ground and it also needs to be connected to the metal enclosure that houses the main electrical panel.  In the picture above you can see the wire with green tape round it that goes to the metal case and the bare copper wire that goes to the stakes in the ground.  The rest of the connection block is for attaching all the neutral wires for all the feeds that you want from the electrical panel.  In the picture above there are only two neutral wires as the main panel is currently only feeding two destinations (two sub-panels).

Breakers

The live connections for feeding off to whatever you want to power are connected via breakers.  Out of the bottom of the main breaker come two thick metal bus strips.  These are Live1(L1) and Live2(L2).  The breakers attach to these live busses.  In the case of wanting 110V power then the a single breaker that just attaches to one of the live busses is used.  If you want 240V then two breakers ganged together are used (one breaker on L1 and one breaker on L2).  Breakers come in different current ratings and different physical sizes.  In the picture there are three 240V breakers each capable of 200 amps (that are used for powering sub-panels) and there are a number of smaller breakers that range in current from 20 amps to 100 amps.

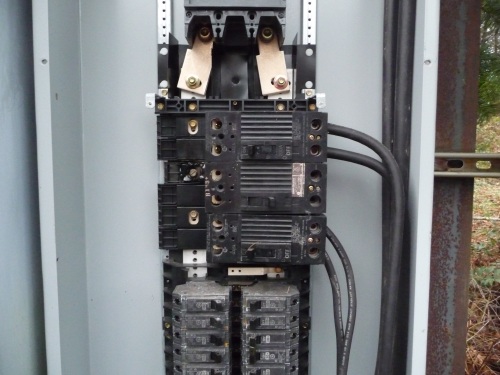

Electrical breakers

My main panel happens to be a GE "A Series Panel".  It takes breaker type "THQB" available from http://www.galesburgelectric.com .

40A dual breaker

http://livewiresupply.com/circuit-breakers/ge/THQB2140?gclid=CjwKEAjwvMnJBRCO2NSu-Puc6AUSJAAf-OSUVl2_NfhqAhmo15e5T5COJ3GvjnPsJHh0rQ_K6tcozBoC7O7w_wcB   $16.18 + $2.95

http://www.galesburgelectric.com/GE-THQB2140-40A-Double-Pole-Bolt-in-Circuit-Breaker.html         $38.92 + $11.87 ship       (For SawMill)

http://www.homedepot.com/p/GE-40-Amp-Double-Pole-Bolt-On-Breaker-THQB2140/300224096?cm_mmc=Shopping%7cTHD%7cG%7c0%7cG-VF-PLA-D27E-Electrical%7c&gclid=CjwKEAjwvMnJBRCO2NSu-Puc6AUSJAAf-OSUcHa2uoBkHNPvqNOX4N5k9-NaDT5wj1Dt98WnwqPKrhoCAwDw_wcB&gclsrc=aw.ds   $23.63

https://www.superbreakers.net/thqb2140.html?gclid=CjwKEAjwvMnJBRCO2NSu-Puc6AUSJAAf-OSUY8Ru1pRFCtqWCSxPXzxCqJbYp7N07MCAkenXH9Tg6BoCuADw_wcB  $16 + $13.26

60A dual breaker

http://livewiresupply.com/circuit-breakers/ge/THQB2160   $16.18 + $2.95

https://www.galesburgelectric.com/GE-THQB2160-THQL-60A-Double-Pole-120-240V-Circuit-Breaker.html     $55    (For Transfer panel)

200A dual breaker

http://livewiresupply.com/circuit-breakers/ge/TQD22200WL   $105.95 + $2.95

http://www.galesburgelectric.com/GE-TQD22200WL-200A-Double-Pole-TQD-Circuit-Breaker-w-Lugs.html    $158    (For house sub-panel)

Little breakers for the yard

Even though your house power will come from sub-panels, having the smaller breakers (eg 20 amps) in the main panel can be useful for powering various things in your yard.

Thick wire reduces light dimming

The wires from the main panel to the sub-panels in your house need to be good thick wire.  The minimum for handling 200 amps is called "3/0".  The reason for potentially using even thicker is that you want to minimize the voltage drop that you will get in the wire when everything in your house is turned on.  It is really annoying to have your lights dim when someone turns on a hair dryer or an electrical heating appliance.  Obviously the thing pulling in the other direction is the fact that thick gauge copper wire is very expensive.

Two sub-panels also reduce light dimming

One of the nice things about the luxury of having two 200 amp sub-panels in the house is that you can use one for your heating appliances and use the other one for your lights and other low current appliances such as assorted electronics.  This will avoid the lights varying in brightness.

There is however a slight building code worry about having two separately fed sub-panels in your house.  Building code says you can only have one service entry feed to a residential house, but if your main panel is outside in the yard this does not by the letter of the law contravene this rule because your main power cutoff is the switch in your yard.  It is though a little worrying because two sub-panels means that the user needs to turn off two switches to cut all power from the building.  If you do use two separately fed sub-panels then it would be wise to mount them next to each other and put permanent labels on the switches to make sure it is clear that there are two switches that need to be turned off.

Panel brand and types

The sub-panels both need to be rated at 200 amps, but only one of them (the one for the lights and electronics) needs to have a large number of output connections.  A good brand of electrical panel (and one that is capable of being used in sub-panel mode) is Siemens.

Siemens 40/40 panel   Details are here .

Whatever brand you pick, get one that uses copper bus bars and supports plug-on neutral breakers.

The thing that is an even higher factor in picking the brand of panel may well be price of AFCI breakers in go into it given that AFCI is needed on almost all 15 and 20 amp circuits.  As it happens, the Siemens AFCI breakers are as low cost as they come (which at $45 each is still expensive).

In my main house the sub-panels are mounted in the basement on the north west wall.

Combined AFCI/GFCI breakers are now starting to become available at a reasonable price...

Siemens Qf 20-Amp 20-Pole Dual Function AFCI/GFCI Circuit Breaker
https://www.lowesforpros.com/pd/Siemens-Qf-20-Amp-20-Pole-Dual-Function-AFCI-GFCI-Circuit-Breaker/50310999   $44.97
Siemens Qf 15-Amp 15-Pole Dual Function AFCI/GFCI Circuit Breaker
https://www.lowesforpros.com/pd/Siemens-Qf-15-Amp-15-Pole-Dual-Function-AFCI-GFCI-Circuit-Breaker/50310997   $44.97

Sub-panels must have separate earth and neutral

In a sub-panel it is necessary to keep the Neutral and the Earth connections separate.  Good panels (such as the Siemens) allow you to separate the neutral bus to make it into two separate busses (one for neutral and one for earth).  Only in the Main Panel are the two connected.  This means that the wire from the Main Panel to a Sub-panel needs to have 4 conductors:  Live1, Live2, Neutral, and Earth.  It is ok for the earth wire to not be separately insulated, but the other three need to be individually insulated.  When connecting wire to the sub-panel for a 110V circuit (eg a string of power sockets) then you will connect the live to a suitable breaker, the neutral to the neutral bus, and the earth to the earth bus.

Main-Lug sub-panels

If you decide that it is not a required convenience to have a master on/off breaker on your sub-panel, then you can use a "Main-Lug" instead of a full panel.  This may be a reasonable choice if you just want to distribute power to a shed.  If there is no main breaker then you will rely on the breaker in the main panel to provide the current limiting and to provide a master on/off switch.  A good Siemens main-lug that provides 8 spaces for full sized breakers, has copper bus bars, has an included earth bus bar, and can be installed outside is here .

Siemens 8/16 Main Lug Outdoor





*
