Rock Breaking

Star How to get rid of a very large rock that is in an inconvenient place .



The problem

When digging the foundations for the main house a rock was found that was way too big for the excavator to move.

Footing Excavation 301

Footing Excavation 302

Footing Excavation 303

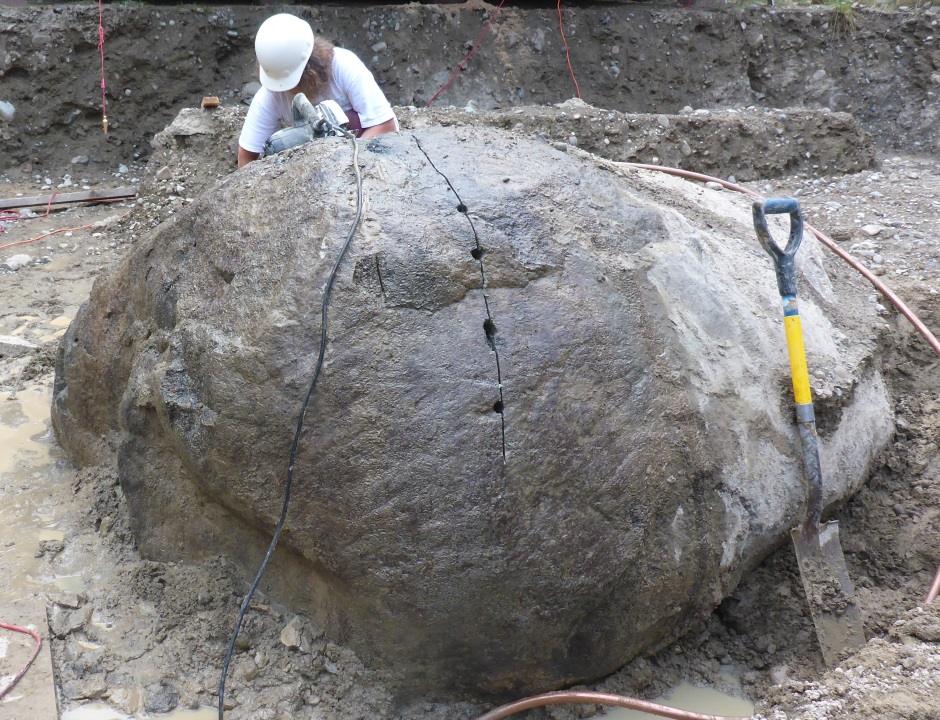

Felicity On Big Rock

Felicity On Big Rock

Various methods

There are various method such as...

Wedge and feathers

Feather And Wedge Failure

You drill 3/4" holes and then hammer them in in sequence.  The picture shows my attempt at using 3/4" wedge and feathers but it did not cause any rock splitting.  Each wedge with its two feathers costs about $12 and they are rarely reusable.  You would need hundreds of sets for a large rock.

Wedges and chisels in sawn slot

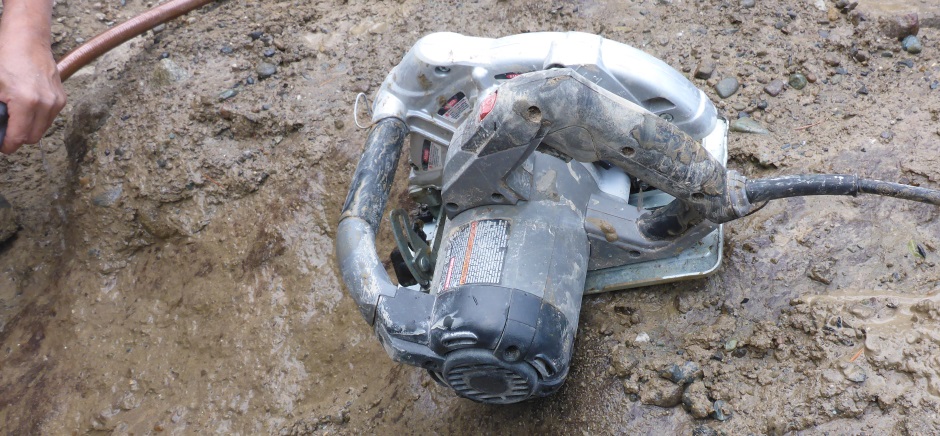

Diamond Rock Cutting Saw

Use a diamond cutting saw to make a 3" deep groove and then hammer masonry chisels into the groove to hopefully get the rock to crack.  The technique has some potential but in my case the rock was just too big.

Jack hammer

Dave Jack hammering

A jack hammer is a useful tool for dealing with very hard ground and for concrete, but is no match for a large rock.

Expanding resin

The technique was not tried.  It requires drilling a large number of 1.5" holes and filling them with expanding resin.  The resin is fairly expensive and so is a 1.5" masonry drill bit.  With the right equipment it is ok drill a hole, but it takes a long time to drill the large number of holes.

Dynamite

This was not tried because of the large number of regulations and restrictions.

Fire

This was found to be by far the most effective method.  You build a very hot wood fire to thermally stress the rock to cause it to crack.



Fire is best method

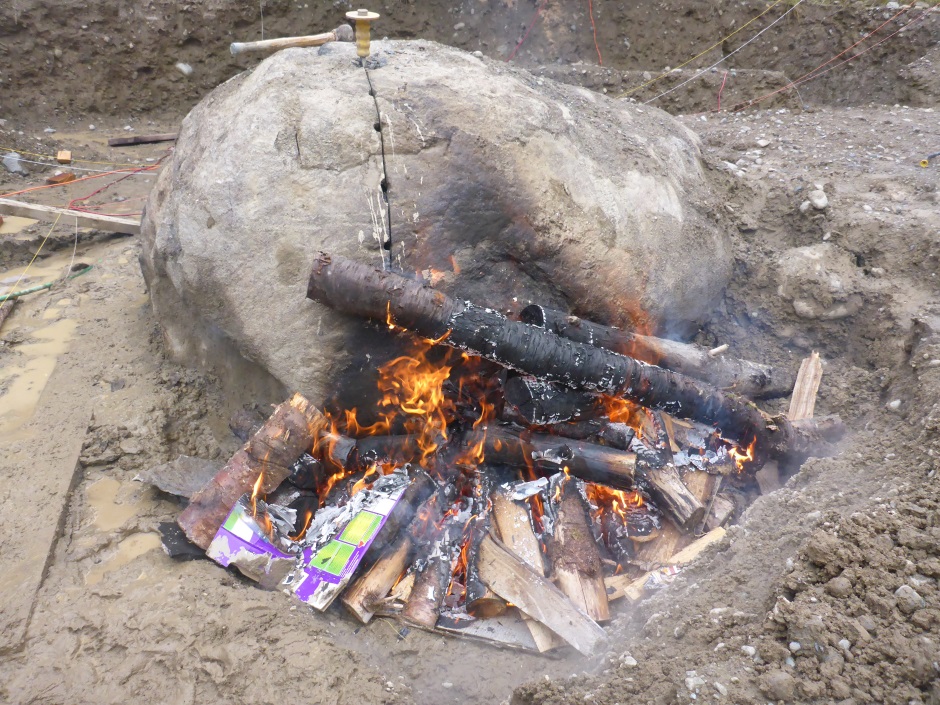

Fire By Rock 101

Fire By Rock 102

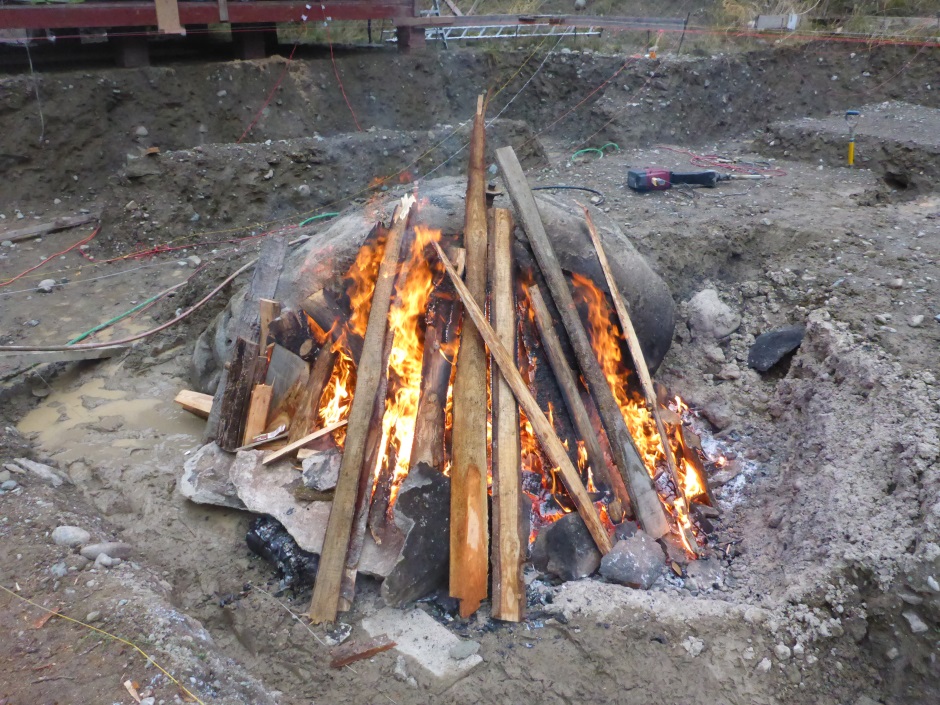

Fire By Rock 103

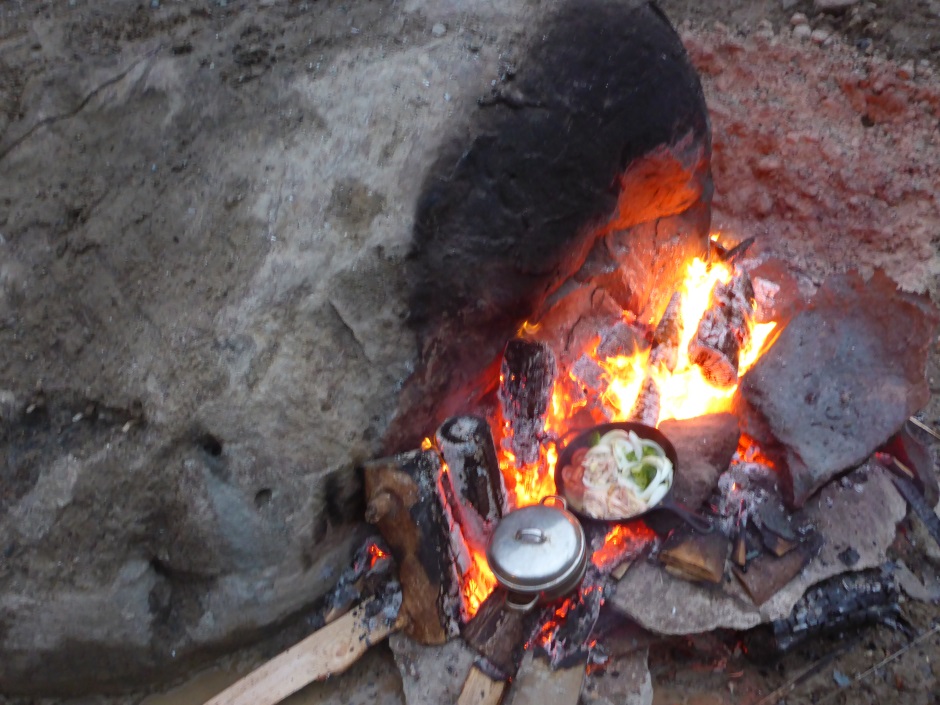

Fire By Rock 104

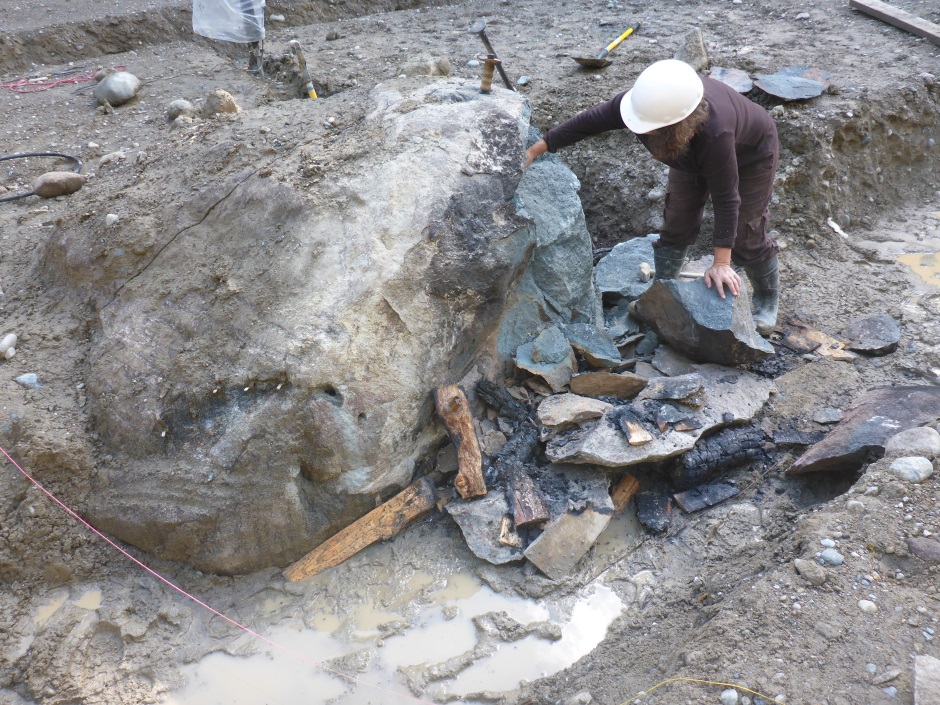

Rock After Day 101

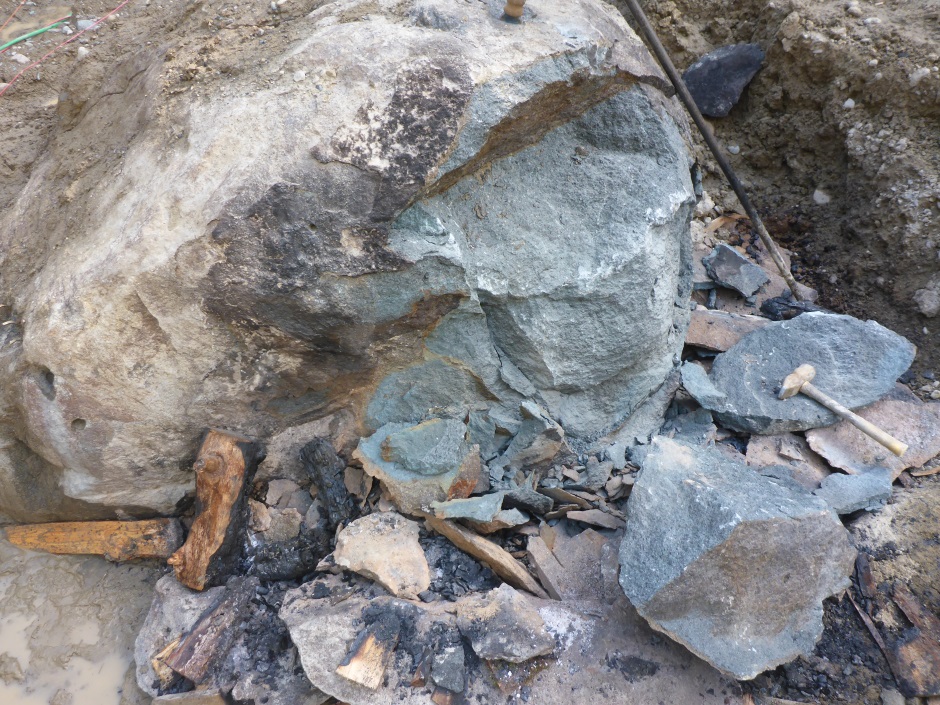

Rock After Day 102

Site Rock Burn

Site Rock Burn

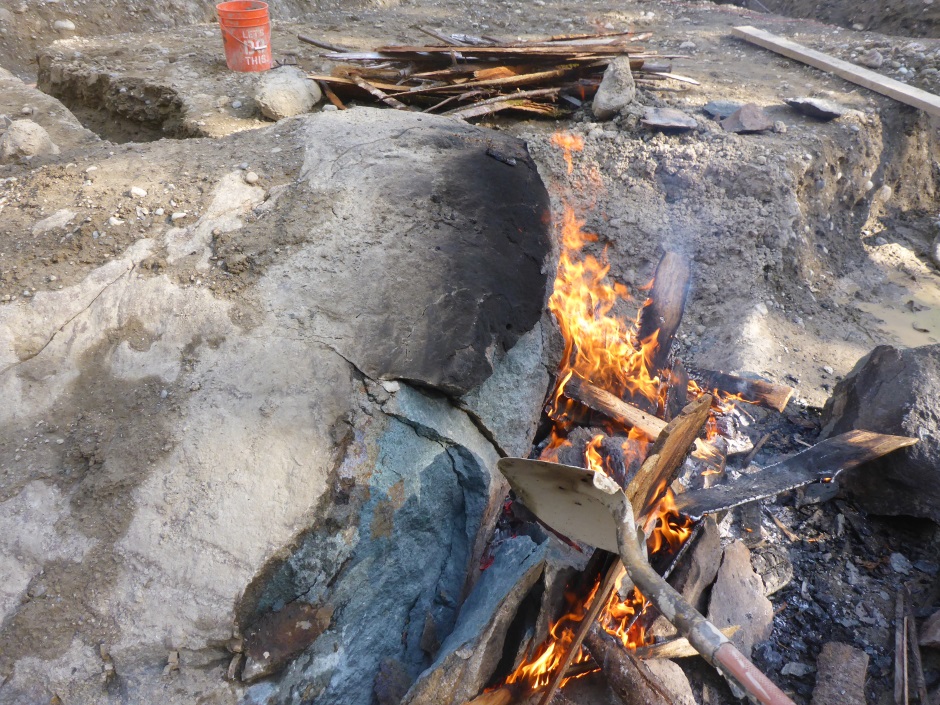

Fire By Rock 201

Fire By Rock 202

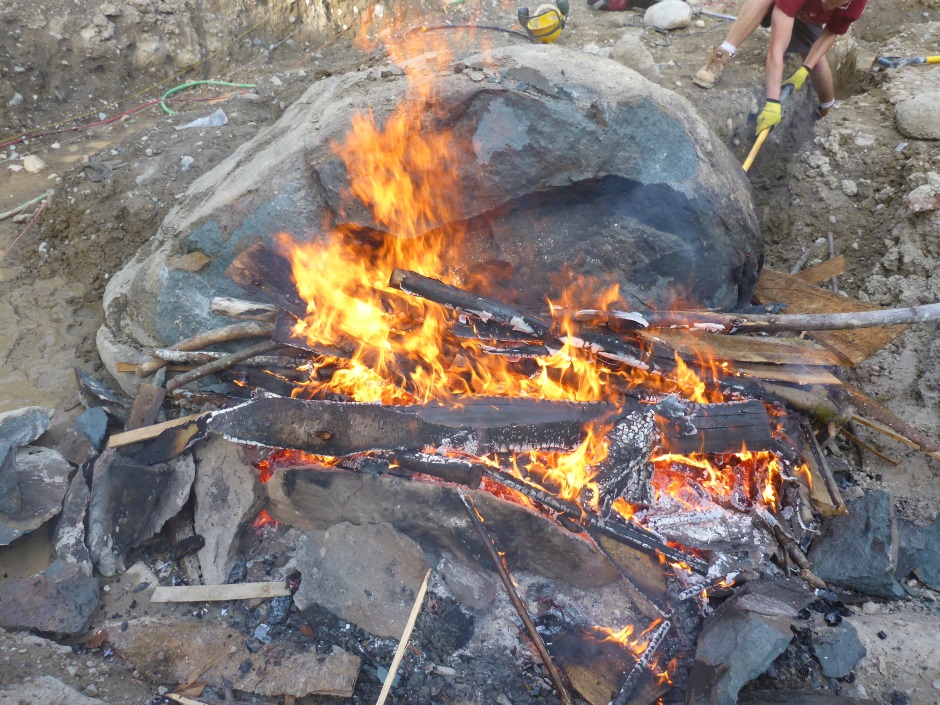

Fire By Rock 203

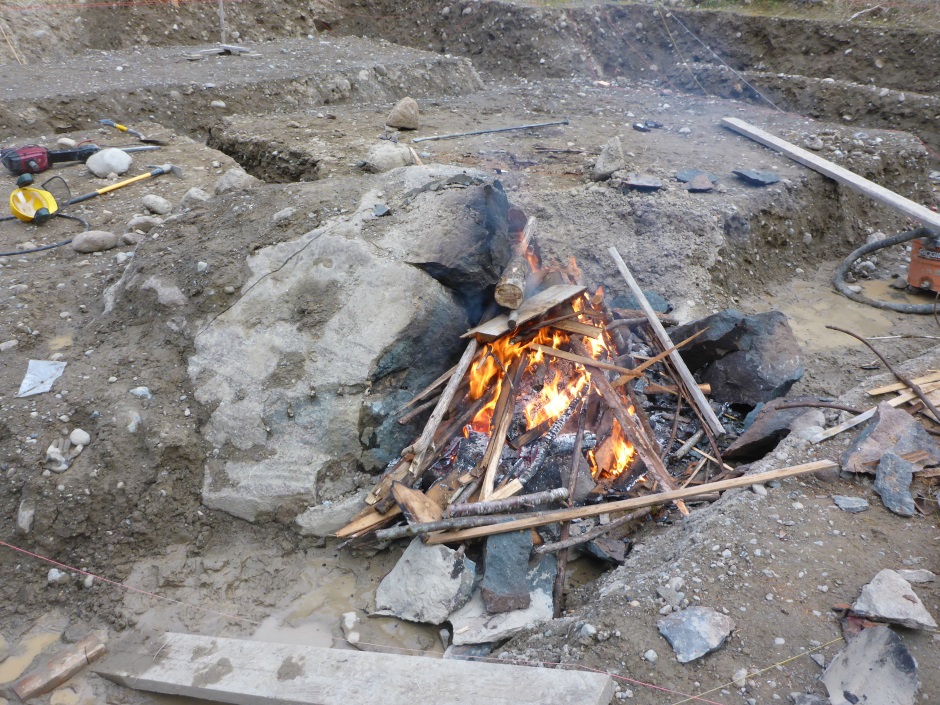

Fire By Rock 204

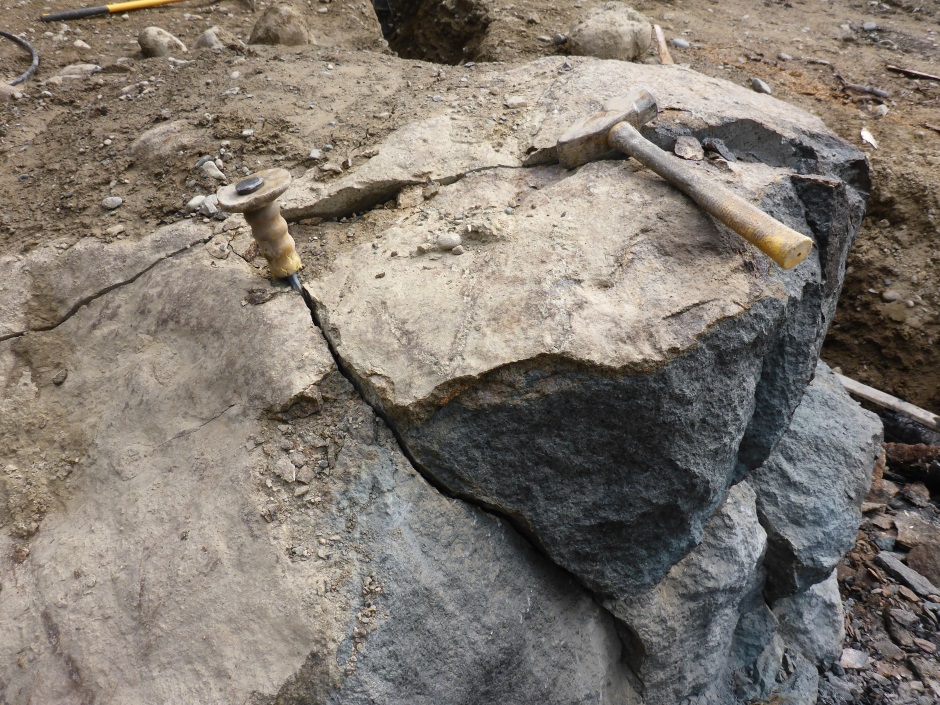

Rock Burning Continued 01

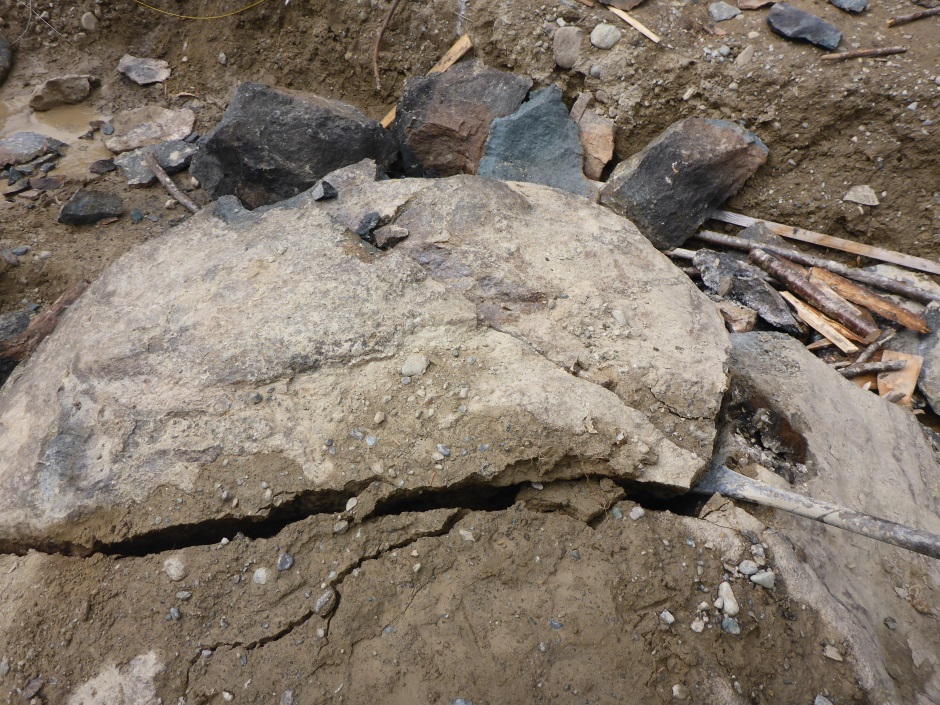

Rock Burning Continued 02

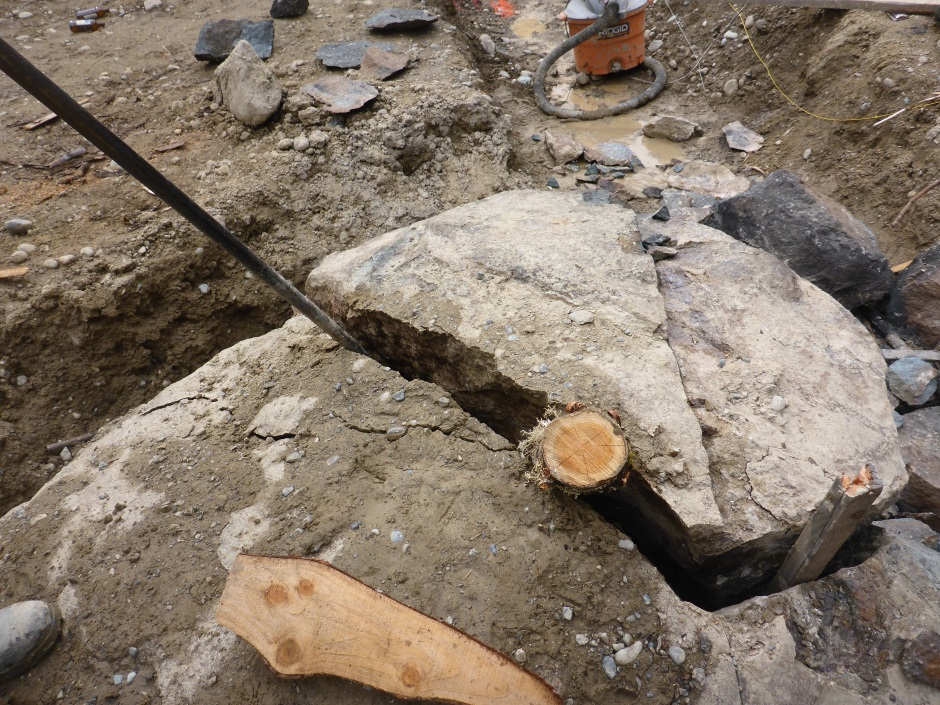

Rock Burning Continued 03

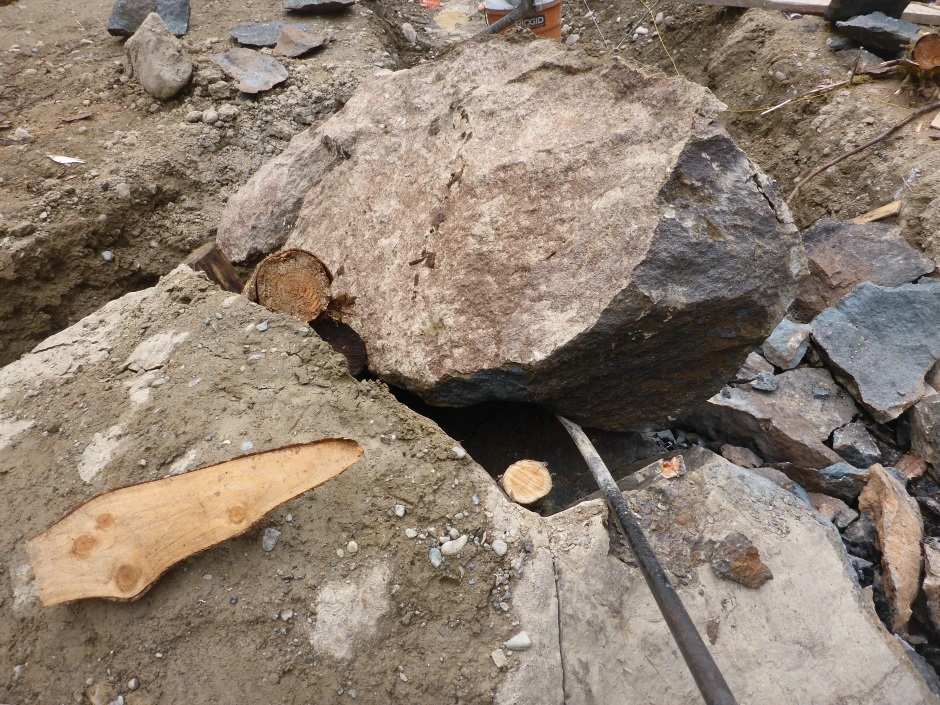

Rock Burning Continued 04

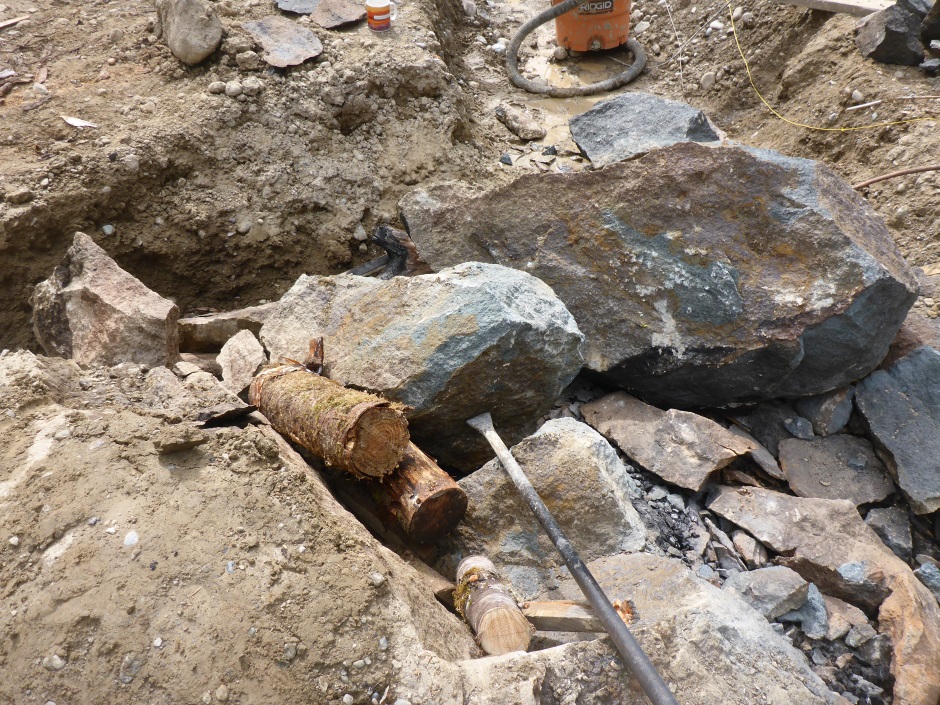

Rock Burning Continued 05

Rock Burning Continued 06

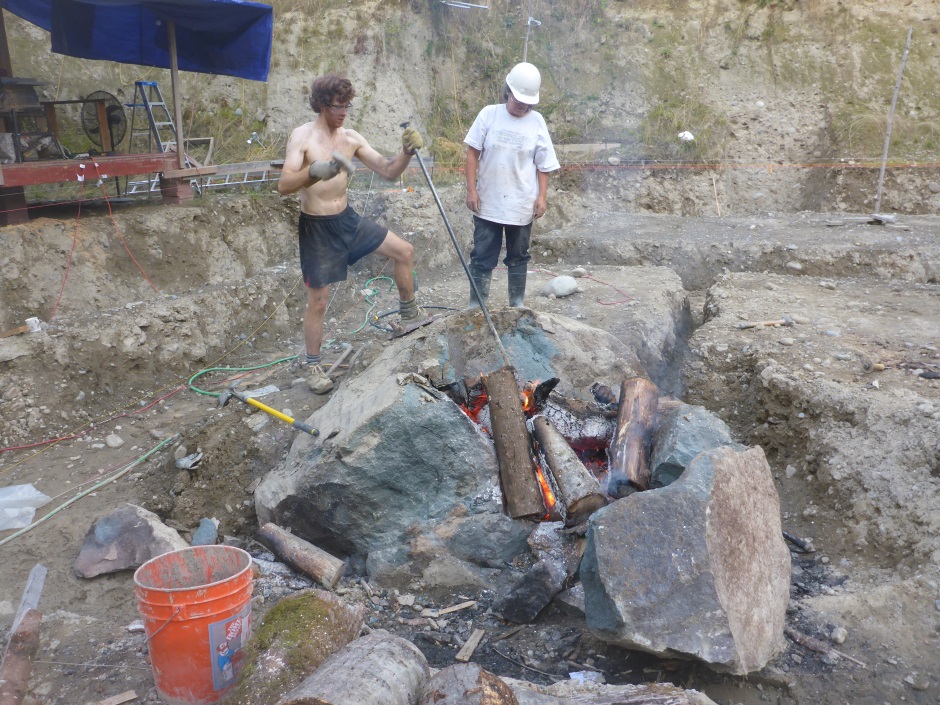

Rock Burning Continued 07

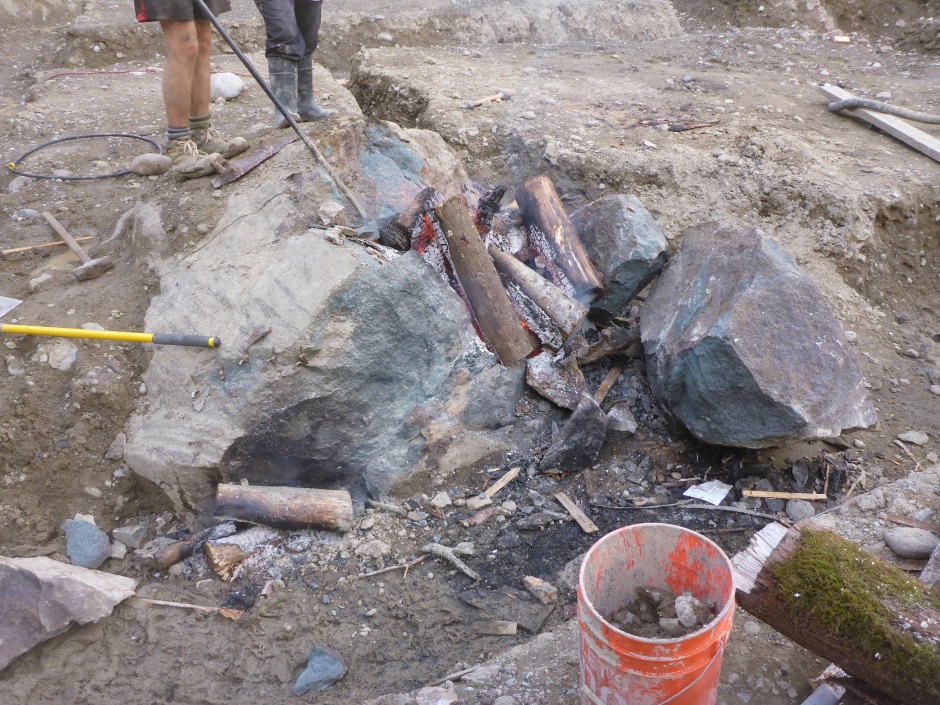

Rock Burning Continued 08

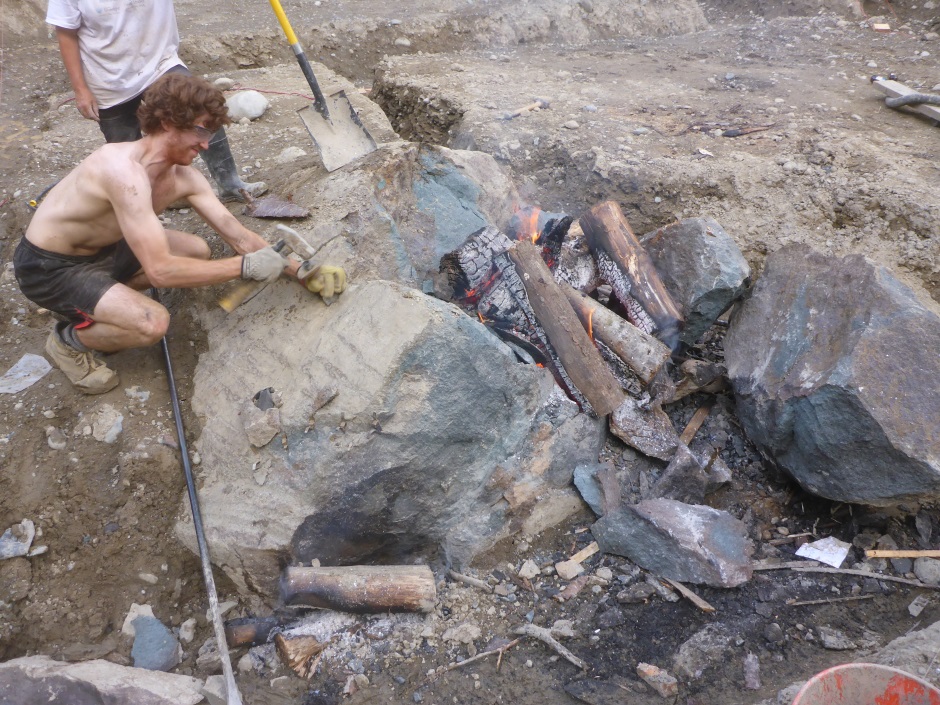

Rock Burning Continued 09

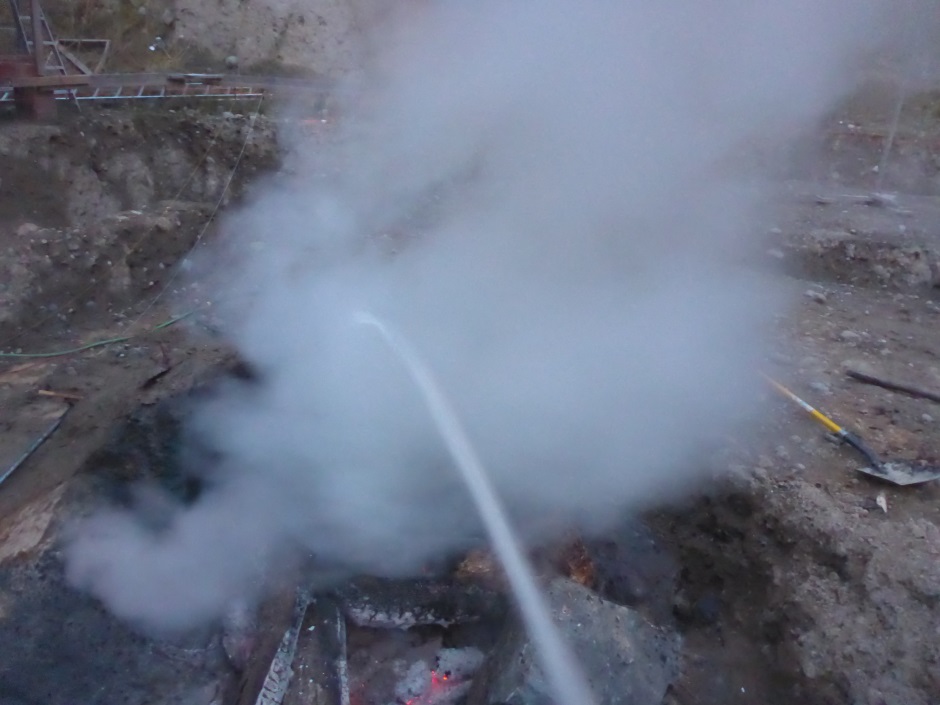

Rock Burning Continued 10 Water

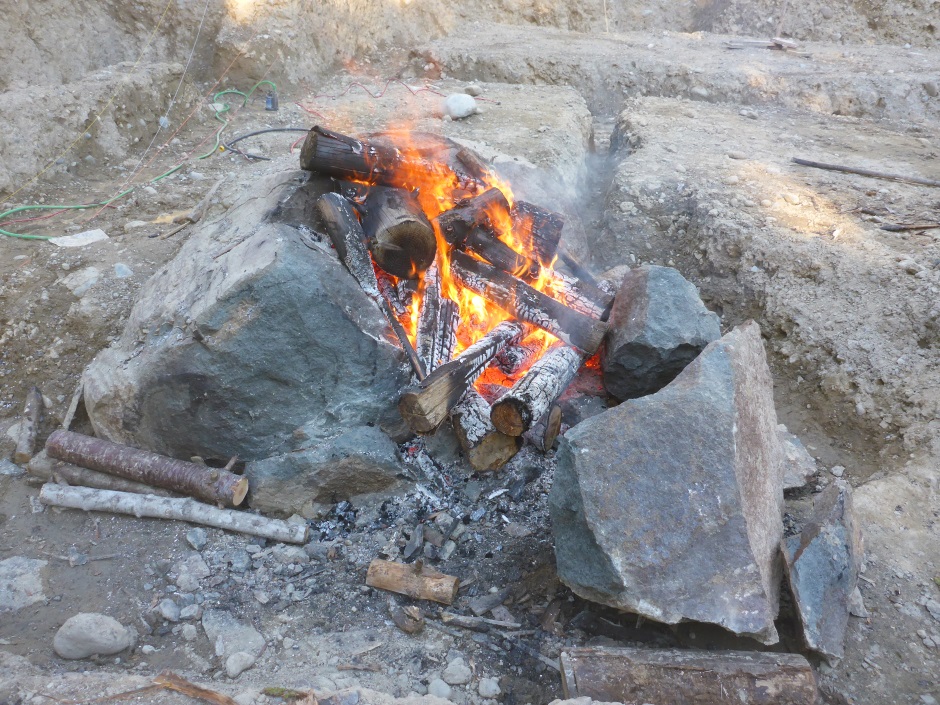

Rock Still Burning

Site Rock Still Burning

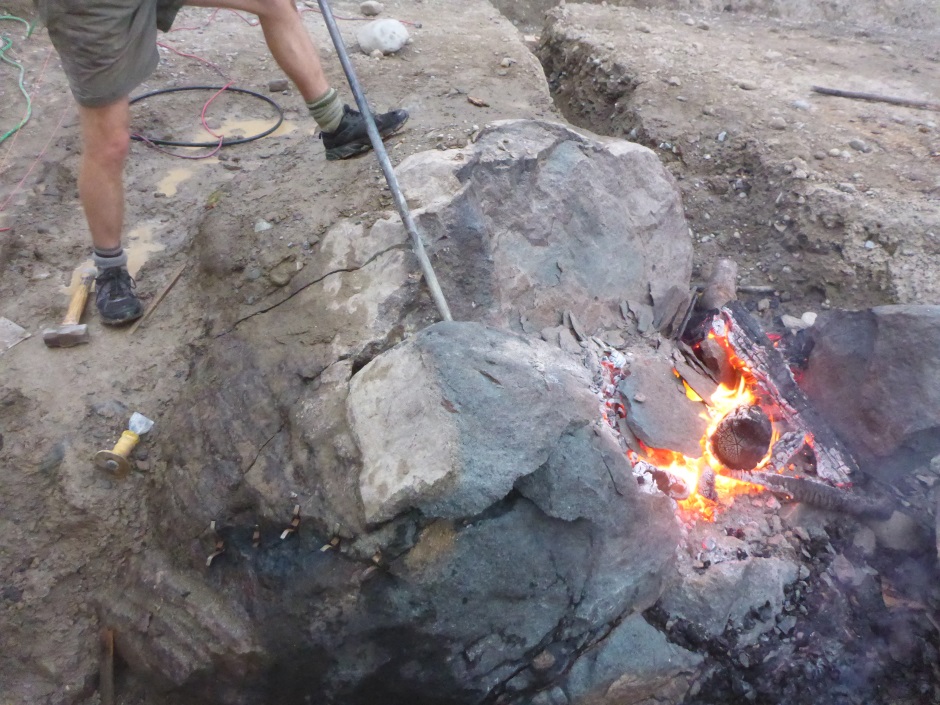

Rock Getting Off Side Top

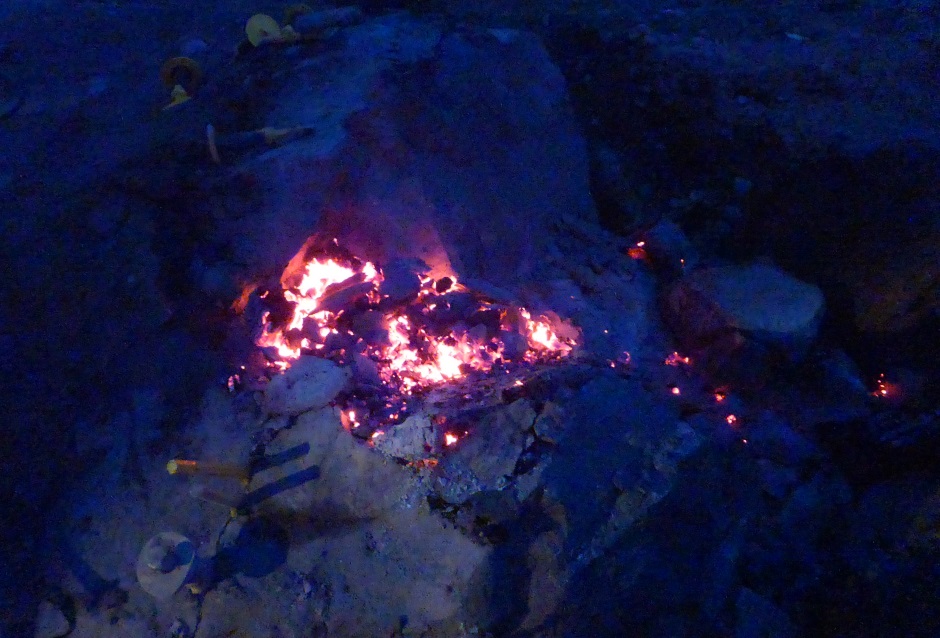

Rock Burning At Dusk

Rock Fire On Top

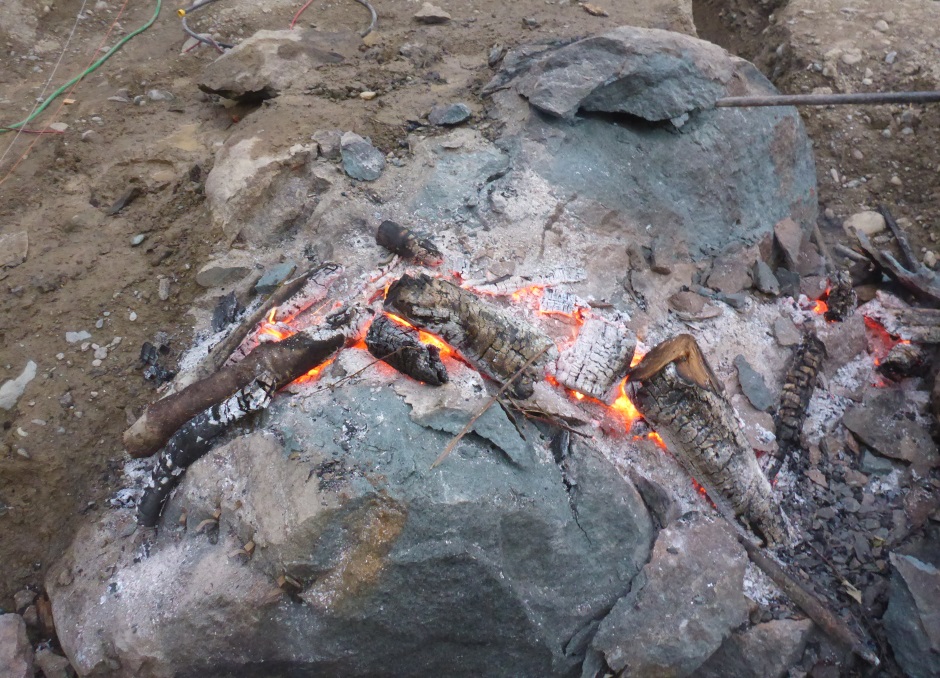

Rock Getting Top Off

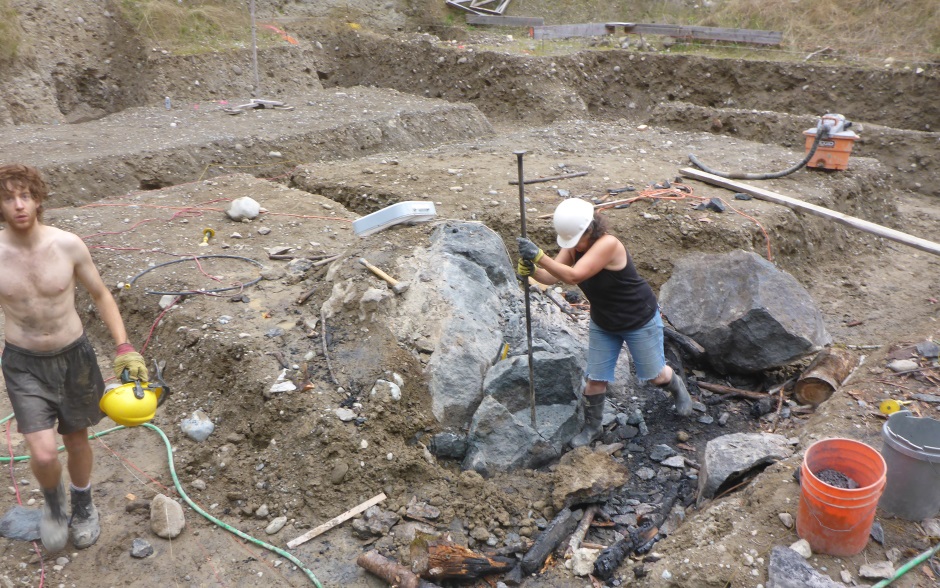

Prying Rock

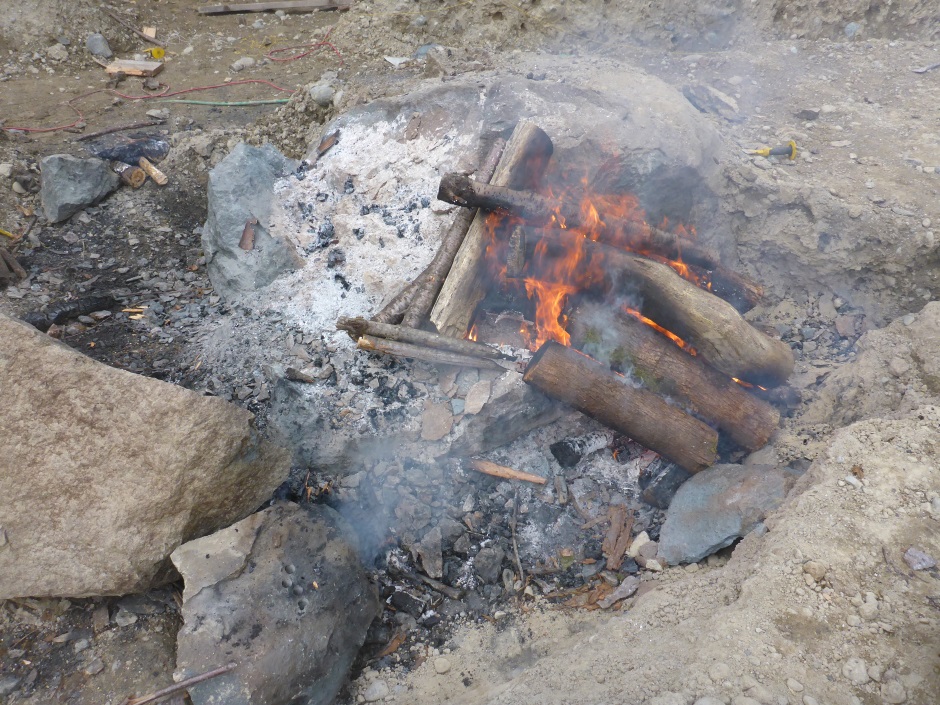

Rock Burning Continues

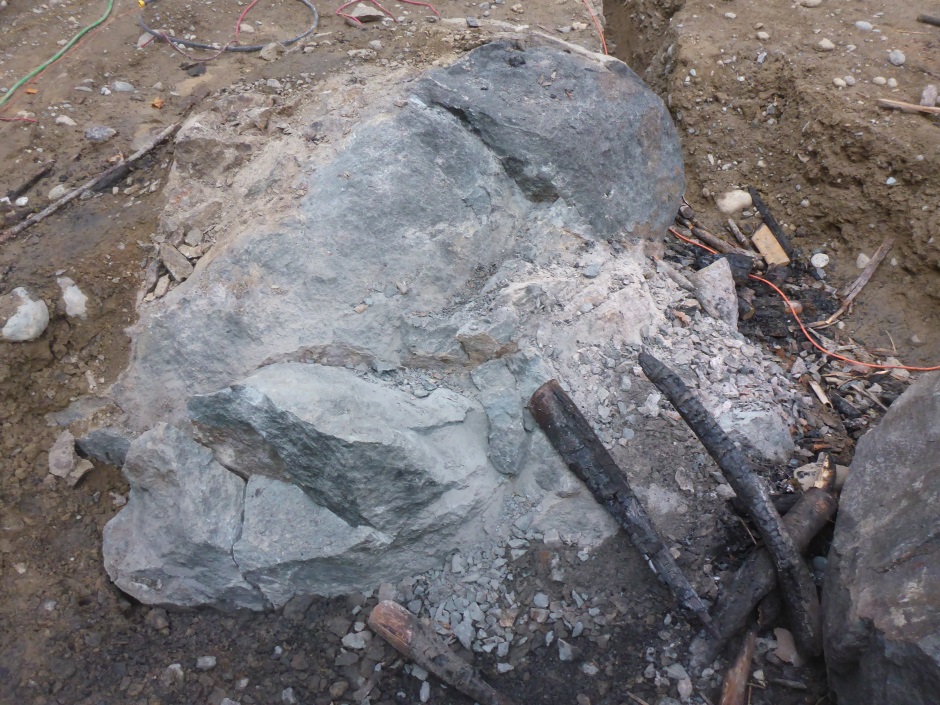

Rock Part Gone

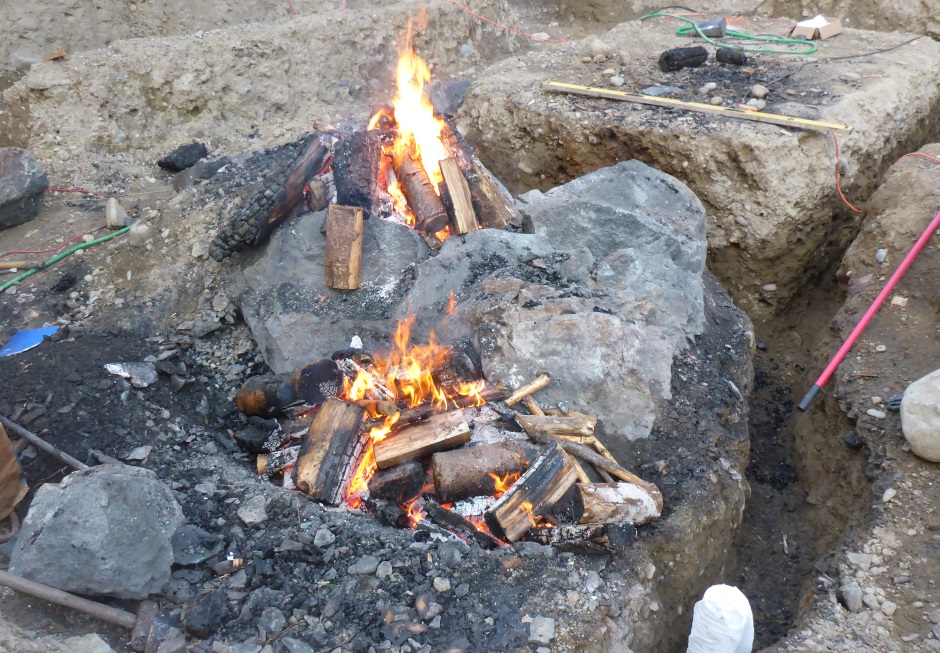

Rock Burn Nearly Finished

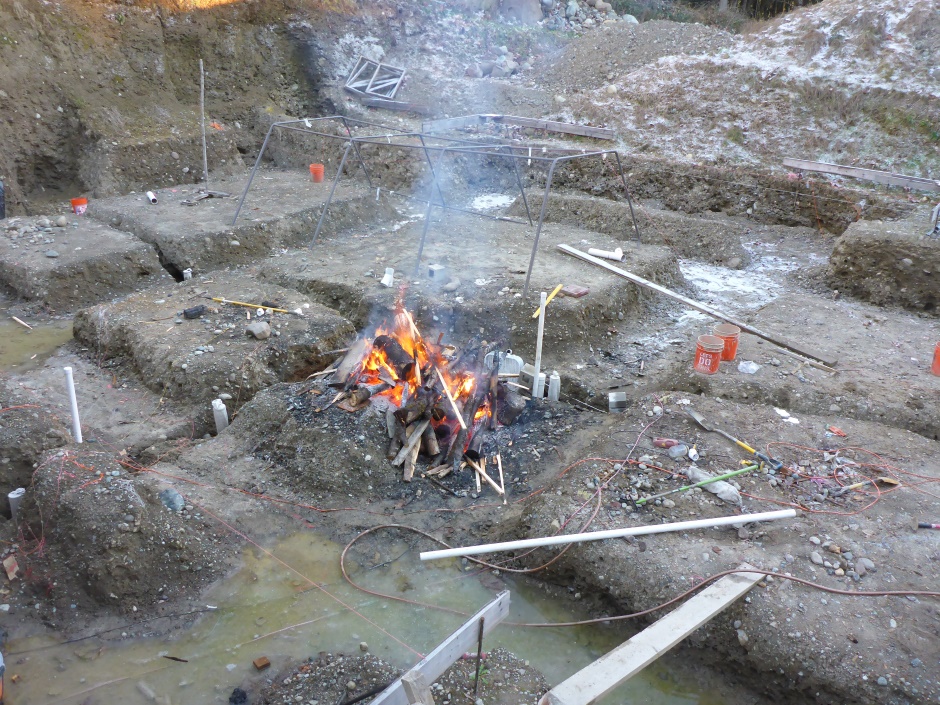

Burn Rock Last Fire

Site Last Rock Burn

Once the rock is reduced in height and width such that it is no longer in the way it can be covered with soil.

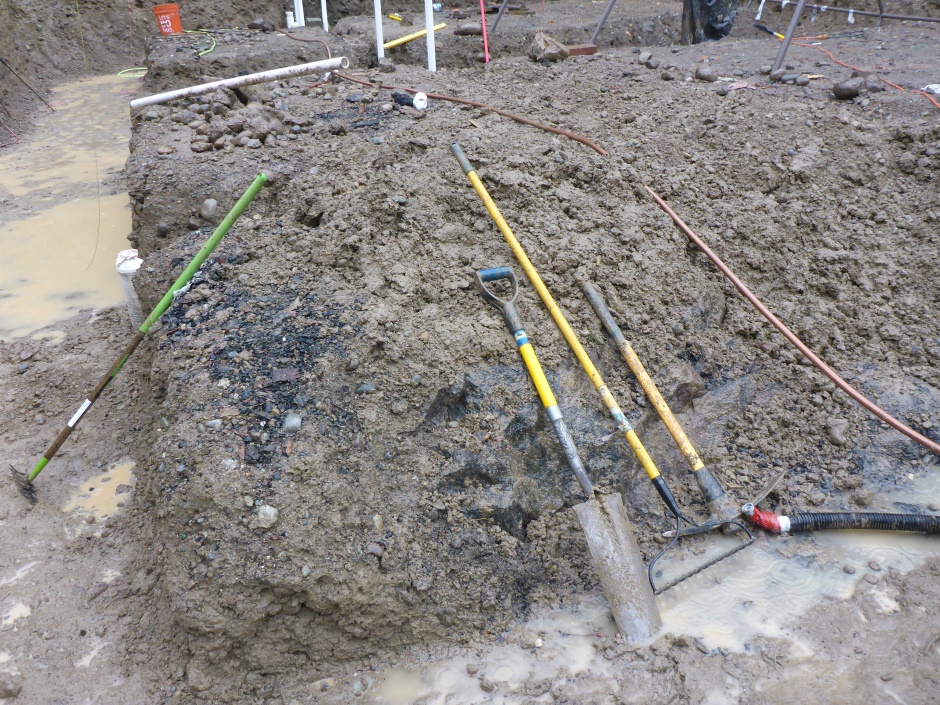

Rock Covered With Soil

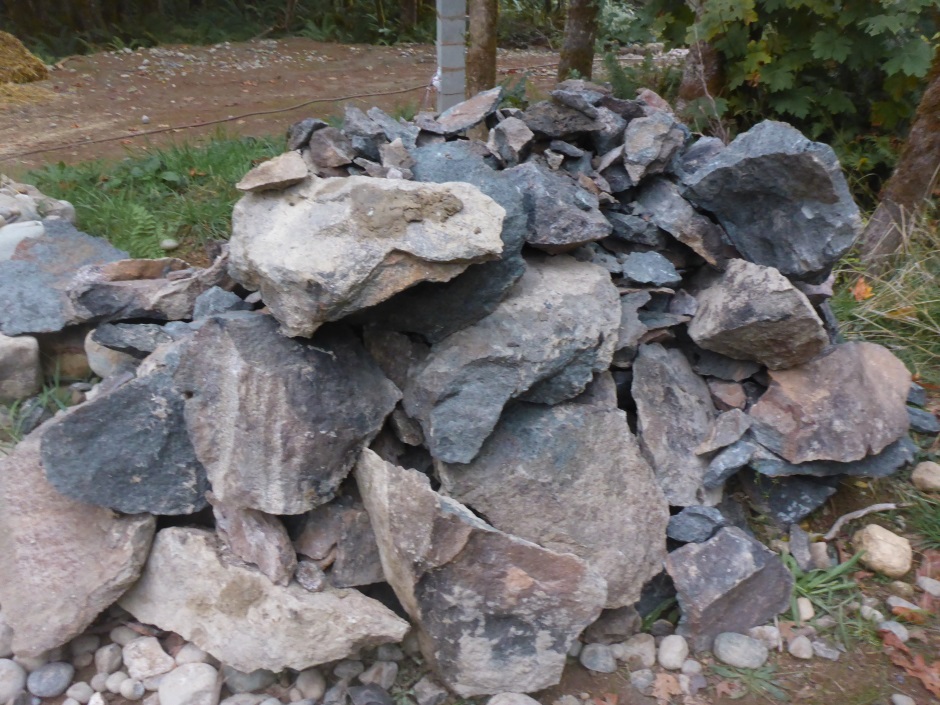

The broken off bits of rock can be used to make a rock wall or rock garden or whatever.

Pile Of Burn Rock Bits





*
