Home Automation - Sensors

Star Useful sensors and switches to find out what's happening in your house.

Often these connect to a Phidgets interface board to allow the PC to see the readings.  Some sensors types (eg motion sensor) switch 115V so you need to use a USB wart to derive a 5V logic signal.



Check for special offers on Phidget products at https://www.robotshop.com/en/phidgets-en.html .



Air Temperature sensor

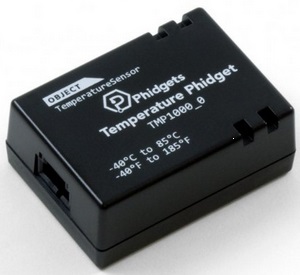

Phidgets Temperature Sensor Vint

https://www.robotshop.com/en/phidget-vint-temperature-sensor.html    $15 free shipping

Phidgets Air Temperature Sensor

http://www.phidgets.com/products.php?category=35&product_id=1124_0     $15

Temperature sensor with a range of -30°C to +80°C with a typical error of ±0.75°C in the 0°C to 80°C range.

Make sure that Ratiometric mode is used.

Need to decide what temperature change amount causes the UI to be updated.



Waterproof Temperature sensor

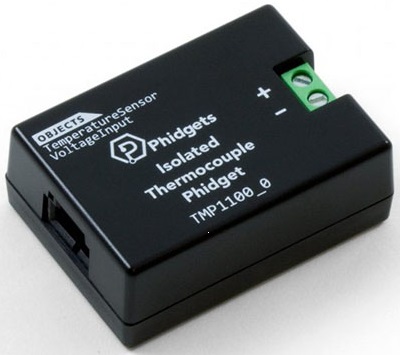

Phidget Thermocouple Interface Vint

https://www.robotshop.com/en/phidget-vint-isolated-thermocouple-interface.html    $25

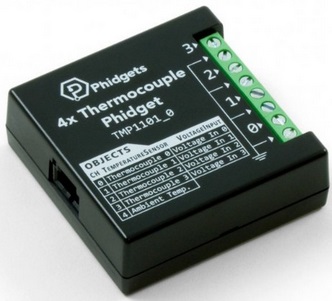

Phidget Thermocouple Interface Vint 4 Input

https://www.phidgets.com/?tier=3&catid=64&pcid=57&prodid=726   $35

https://www.robotshop.com/en/phidget-vint4-input-thermocouple-interface.html   $35

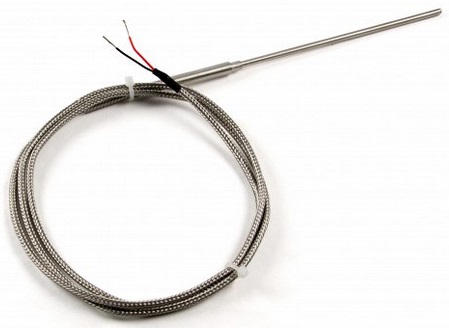

Phidget Thermocouple Probe

https://www.phidgets.com/?tier=3&catid=14&pcid=12&prodid=729    $16

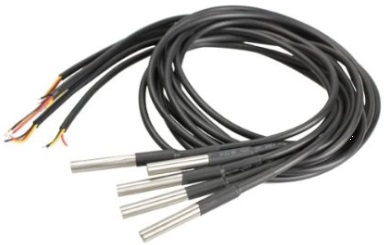

Waterproof Temperature Sensors

http://www.amazon.com/Vktech-DS18b20-Waterproof-Temperature-Transmitter/dp/B00CHEZ250/ref=pd_sim_86_8?&ie=UTF8&refRID=0N3A7KVJ60GAAJNTDJAA        $6.99 for 5

5V power.  5V use a 4.7k resistor between signal and VCC.
Output leads:  Red (VCC), Yellow(DATA) , Black(GND)  (Possibly Red(VCC) Yellow(GND) Green(DATA)).
Data sheet:  http://datasheets.maximintegrated.com/en/ds/DS18B20.pdf
For more information on how to use, see:
http://www.hacktronics.com/Tutorials/arduino-1-wire-tutorial.html  http://datasheets.maximintegrated.com/en/ds/DS18B20.pdf  http://www.atmel.com/Images/doc2579.pdf  http://mbed.org/users/snatch59/notebook/onewirecrc/
Can use the Microsoft OneWire library.



Light sensor

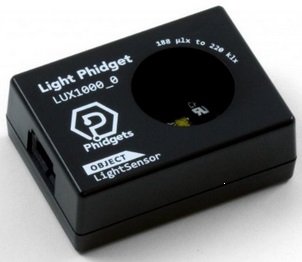

Phidgets Light Sensor Vint

https://www.robotshop.com/en/phidget-vint-light-sensor.html   $12 free shipping

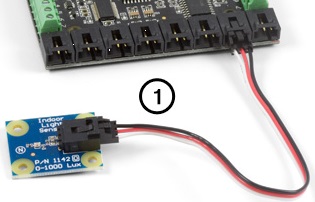

Temperature Sensor Board

http://www.phidgets.com/products.php?category=6&product_id=1142_0    $7

The 1142 Light sensor can measure ambient light up to 1000 lux (roughly equivalent to the typical lighting in a studio, or the sky on an overcast day).  Each sensor has been individually calibrated, and a label has been applied to the back of the board with a calibration value which can be used in your calculations to increase measurement accuracy.  Some light sensors report drastically different values depending on the type of light being detected.  The 1142 light sensor, however, only differs by a factor of 1.2 when measuring fluorescent light versus incandescent.  If you need a larger measurement range, take a look at the 1143 – Light Sensor 70,000 lux.

Just plug it into an analog input on a sensor board.  5VDC comes down the sensor cable from the sensor board.

User guide:  http://www.phidgets.com/docs/1142_User_Guide



Analog sensor cable

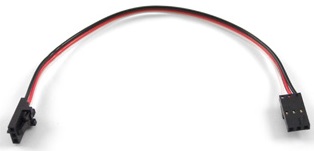

Sensor analog cable

http://www.phidgets.com/products.php?product_id=3034    $2

This is just purchased to get the right connector for wiring up your own analog sensors.



Soil Moisture sensor

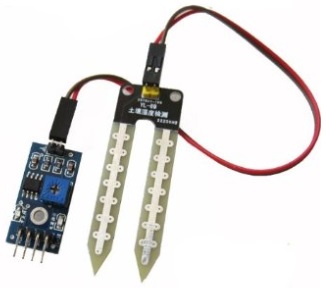

Soil Moisture Sensor

http://www.amazon.com/sunkee-Soil-Hygrometer-Moisture-Sensor/dp/B00AYCNEKW/ref=pd_sim_328_11?ie=UTF8&refRID=1JG43TNW4B65HY89XJFD        $4.98

http://www.miniinthebox.com/fc-28-d-soil-hygrometer-detection-module-soil-moisture-sensor-blue_p685424.html   $2.99

Module Output is high level when there is a soil moisture deficit.

Feed it 5VDC from a power supply.

Dual output mode:  analog output more accurate.
Power indicator (red) and digital switching output indicator (green).

Some people complained about corrosion.  Either tin the probes with solder or use a stainless steel screw instead of the actual probe.

Do NOT apply current to the sensor continuously or it will send the metal ions from the plated sensor into the soil.  You need to only power it up for the duration of the measurement.  That means you probably need a relay on the 5VDC to it.

Pin Definition VCC 5V,  GND,  GND,  DO Digital output interface (0 and 1),  AO Analog output interface.



Ph sensor

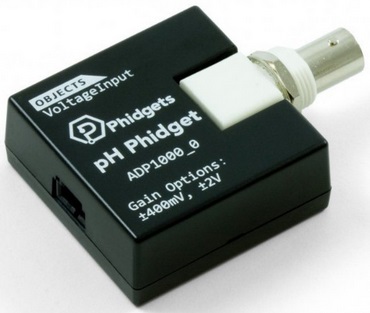

Phidget Ph Sensor Interface

https://www.robotshop.com/en/phidget-vint-ph-meter-module.html   $18.75 + tax

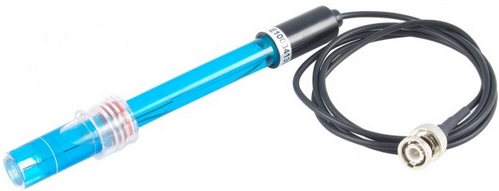

Phidgets Ph Probe

https://www.robotshop.com/en/bnc-ph-lab-electrode.html    $29



Humidity sensor

Humidity Phidgets Vint

https://www.robotshop.com/en/phidget-vint-humidity-sensor.html  $20 free shipping

https://www.phidgets.com/?tier=3&catid=14&pcid=12&prodid=644    $20 + shipping

Need to also buy a VINT hub, but getting a VINT hub is a worthwhile thing to support in software.

Phidget Vint Hub

https://www.phidgets.com/?tier=3&catid=2&pcid=1&prodid=643   $30



Sound sensor

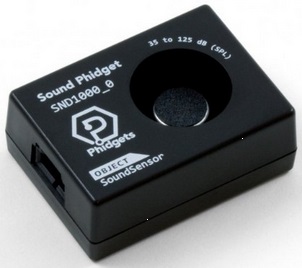

Phidget Sound Sensor Vint

https://www.phidgets.com/?tier=3&catid=8&pcid=6&prodid=972   $15

https://www.robotshop.com/en/phidget-vint-sound-sensor.html    $15



Magnetic sensor switch

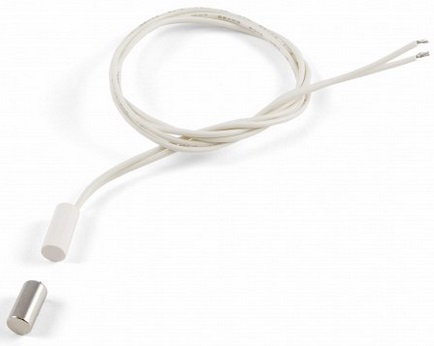

Magnetic Switch Small Circular

https://www.phidgets.com/?tier=3&catid=13&pcid=11&prodid=416    $2.50

Magnetic Sensor Switch

http://www.phidgets.com/products.php?category=32&product_id=3562_0        $2.50

Use a 5VDC power supply to one end and connect the other end to a digital input on the sensor board.

The 3562 magnetic contact switch is very small and is designed for surface mounted installations. The switch handles gaps of up to 12mm (1/2 inch) between the magnet and the switch. The switch will turn the digital input "on" when the magnet is within 12mm of the switch, and will turn "off" when the contact is broken by moving the magnet more than 13mm away.



Motion detector

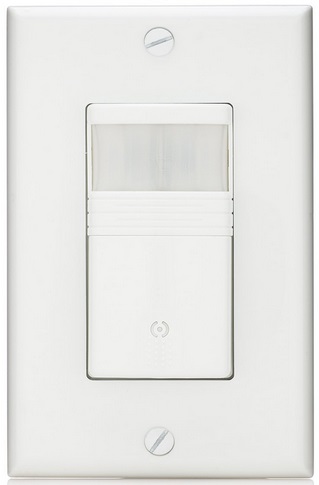

Motion Sensor Decora

https://smile.amazon.com/gp/product/B01M1C7K82/ref=oh_aui_detailpage_o00_s01?ie=UTF8&psc=1

Typically these are available for about $11.  They are used to switch on a hidden 115V socket.  Use a USB wart to derive a 5V logic signal that can be fed into a digital input for the HouseMaster central controller.

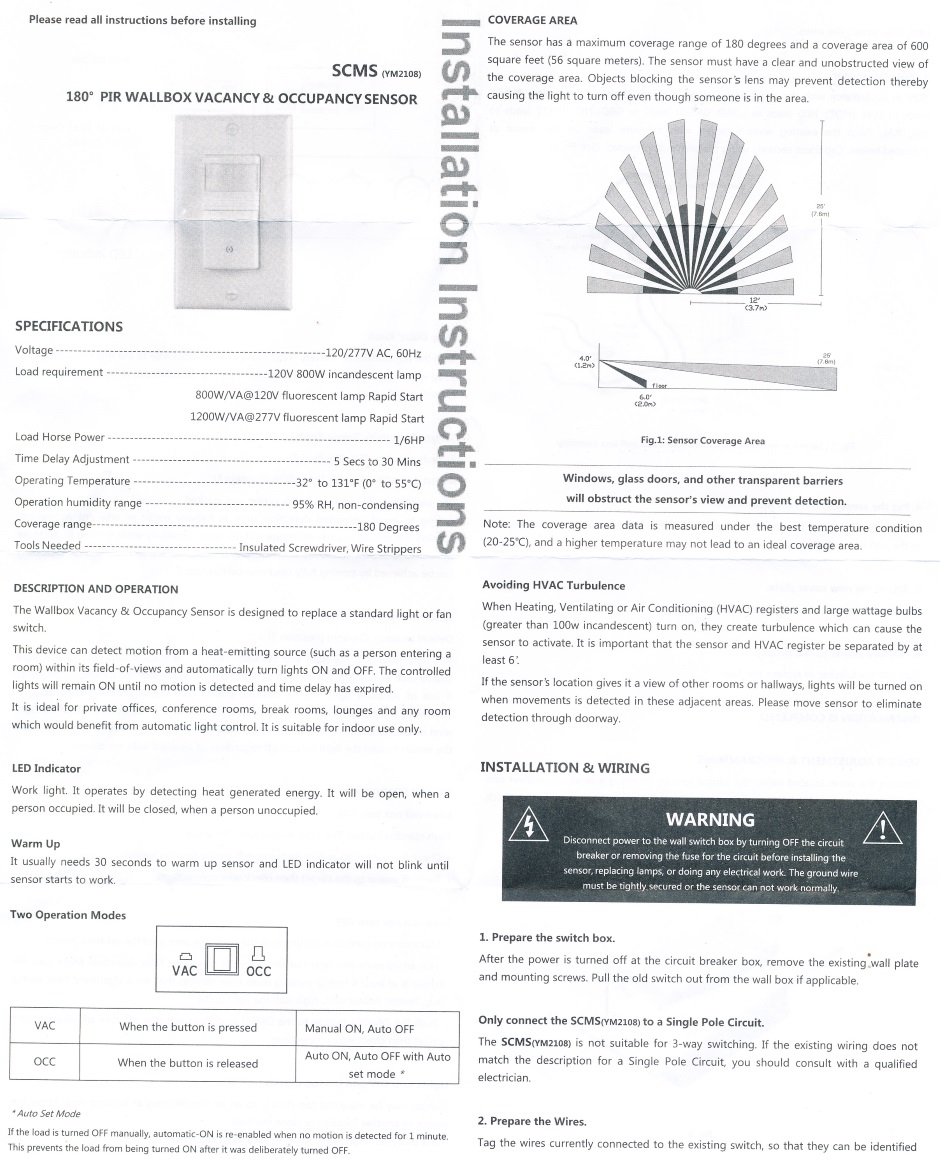

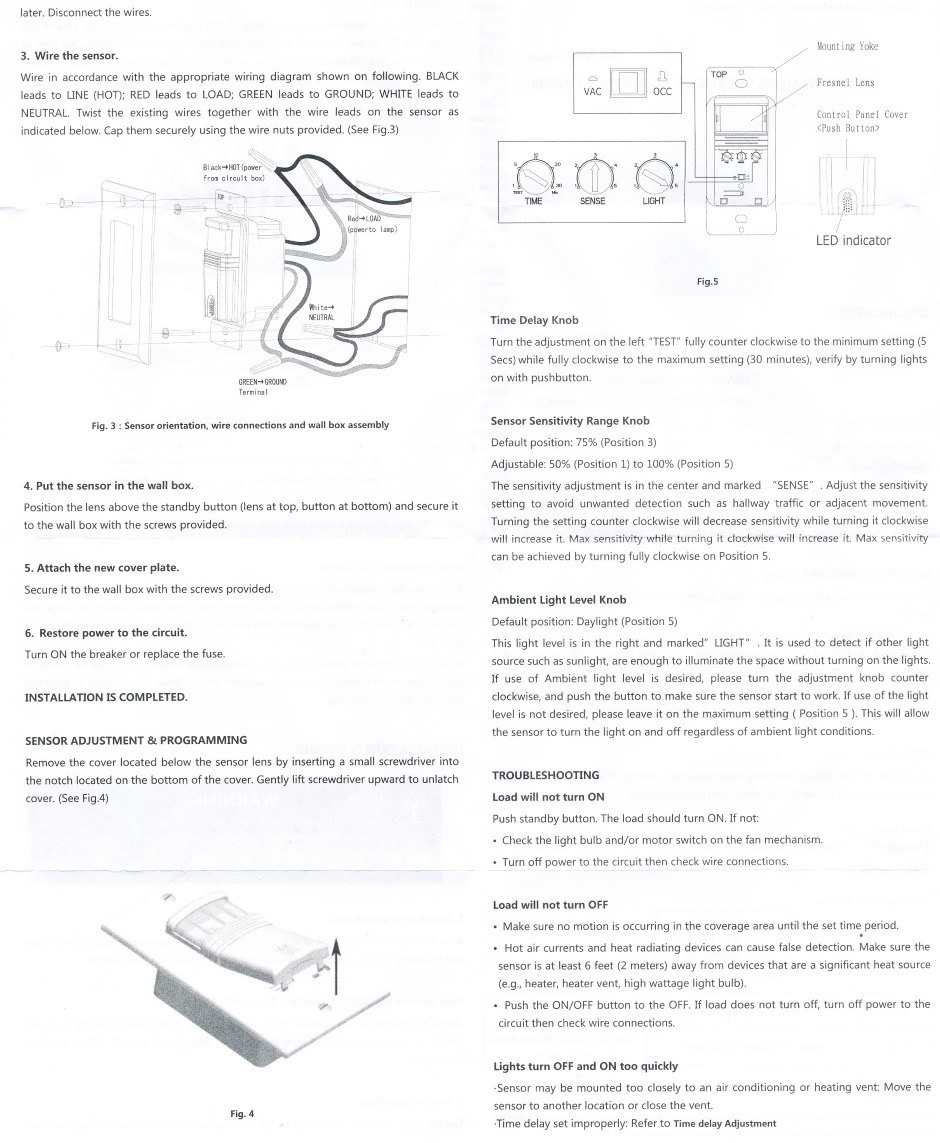

Decora Motion Sensor Details

Decora Motion Sensor Details



Glass break pizo sensor

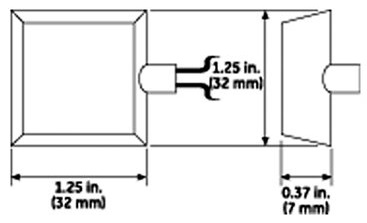

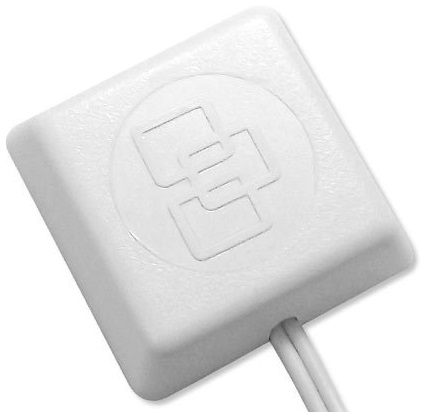

Glass Break Pizo Sensor    Glass Break Pizo Sensor Drawing

https://www.amazon.com/Interlogix-Glassbreak-Shock-Detector-White/dp/B0016L6J5W/ref=pd_day0_hl_421_10      13.50

The detector is just a normally closed switch which opens when a break is detected



Glass break acoustic sensor

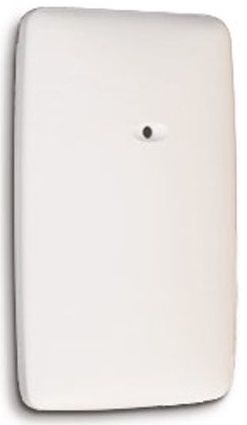

Acoustic Glass Break Sensor Honeywell

https://www.amazon.com/Honeywell-Intellisense-FG-1625F-Flush-Mount-Glassbreak/dp/B000HAOX74   $35

Honeywell Intellisense FG-1625F

Mounts in a single gang electrical box.

http://library.ademconet.com/MWT/fs2/0-001-030-01/FlexGuard-Glassbreak-Detector-Brochure.PDF

http://library.ademconet.com/MWT/fs2/0-001-030-01/FG-1625F-Dealer-Data-Sheet.PDF



Water leak sensor

For basement.

https://www.amazon.com/dp/B07DQM2N1J/ref=psdc_7491105011_t3_B07K8XFS6V



Momentary Decora Wall Switch

Momentary Decora Wall Switch

https://www.lowes.com/pd/Eaton-15-Amp-White-Momentary-Light-Switch/1000193153   $9.63

https://www.homedepot.com/p/Eaton-15-Amp-120-Volt-Momentary-Contact-Switch-in-White-7521W-BOX/206933186   $9.73



I/O Linc - INSTEON Freeze Sensor Kit $65
http://www.smarthome.com/24950A8/I-O-Linc-INSTEON-Freeze-Sensor-Kit/p.aspx





*
